Last-minute opportunity NEW Garrett TA3123 Turbo JCB Loader Dozer Loadall Perkins 1004.2T 466674-5003

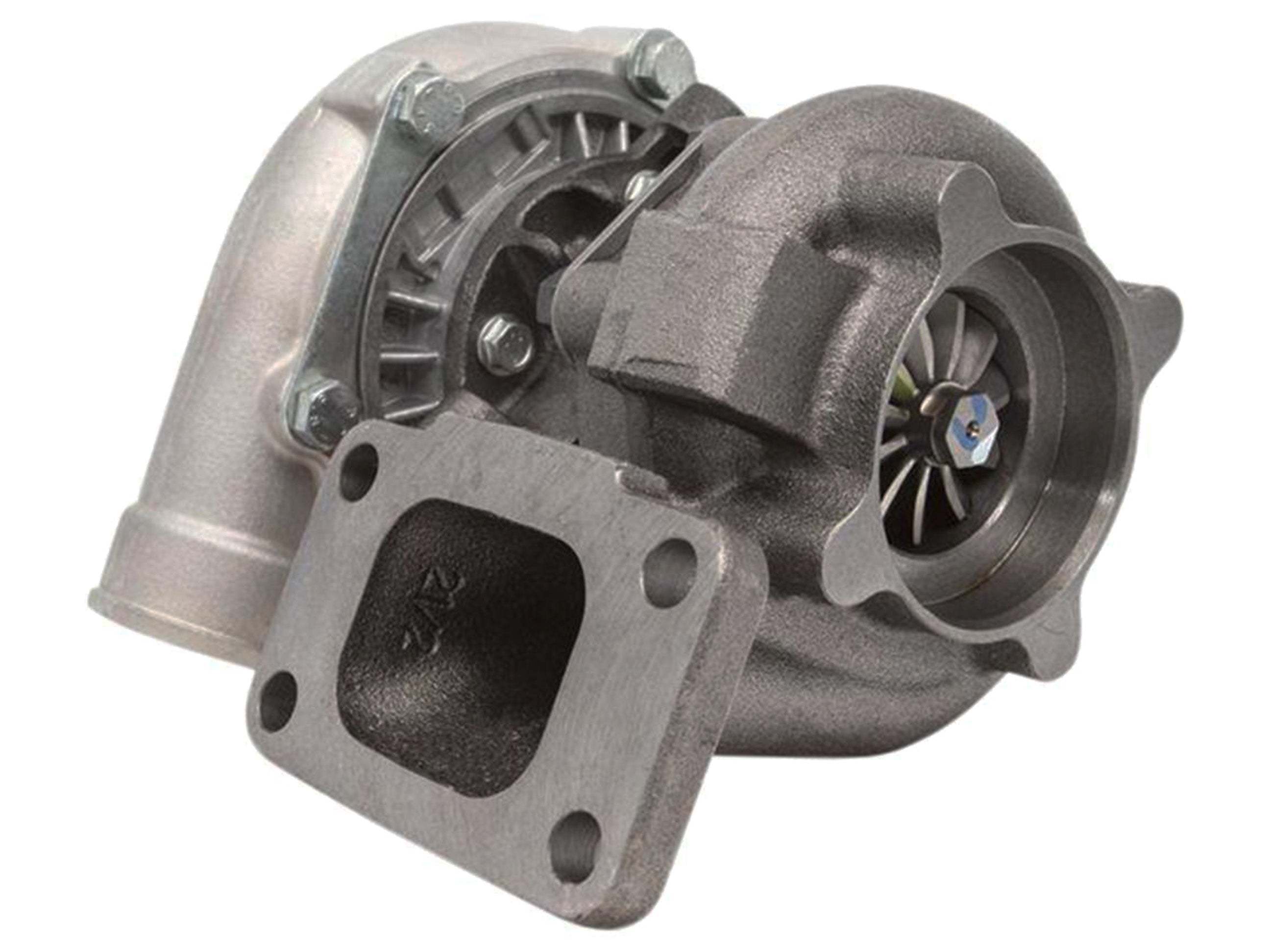

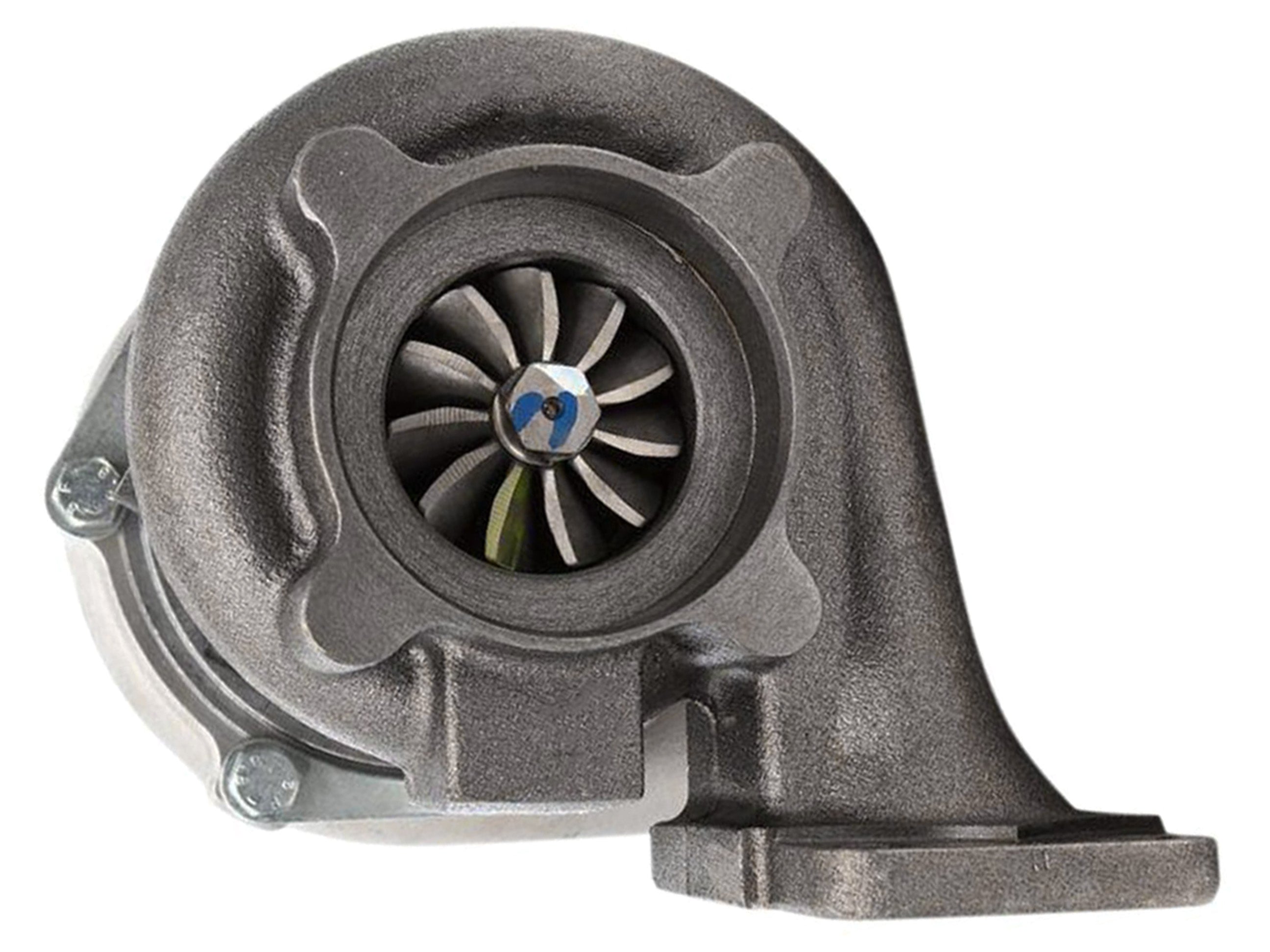

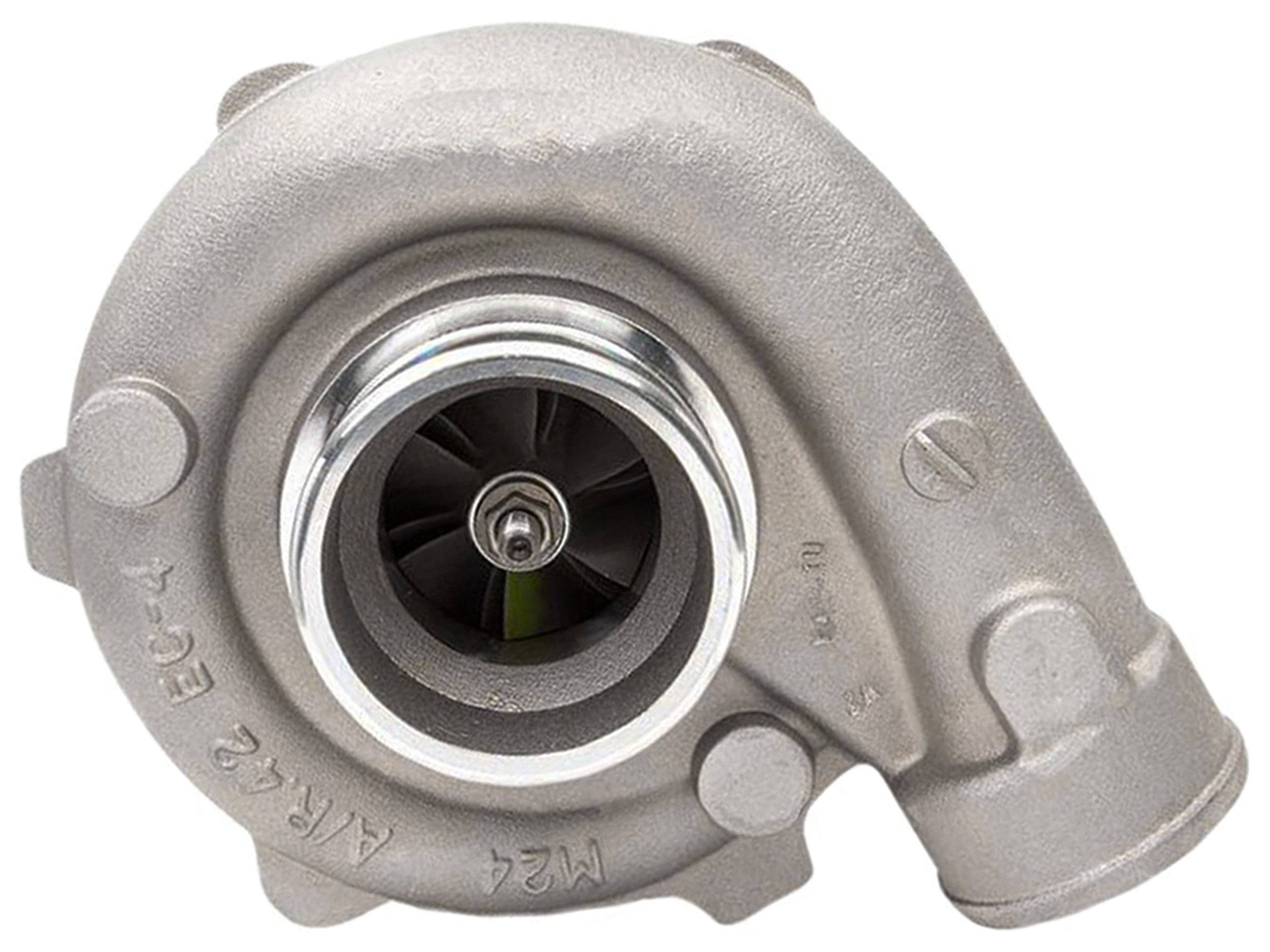

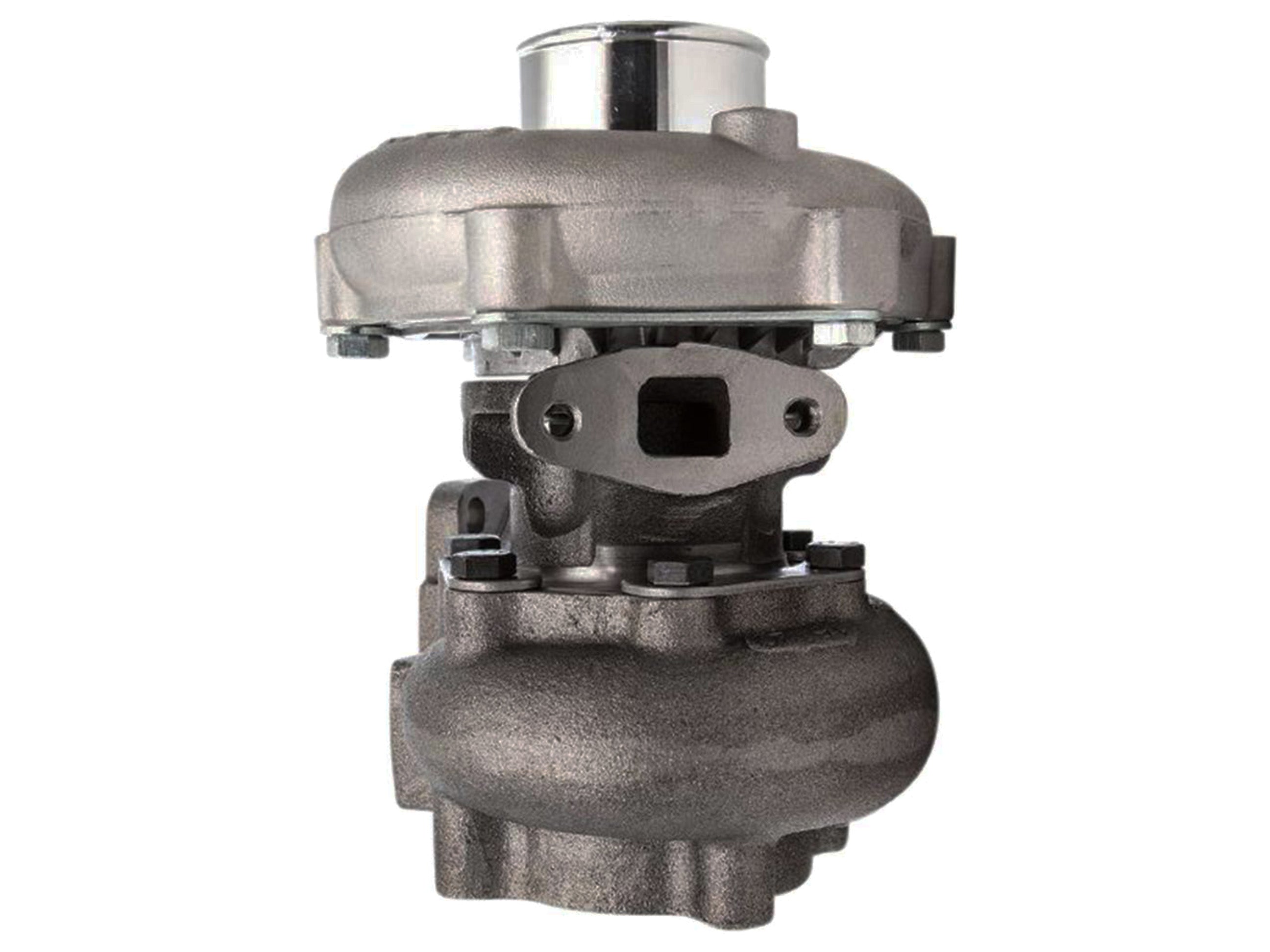

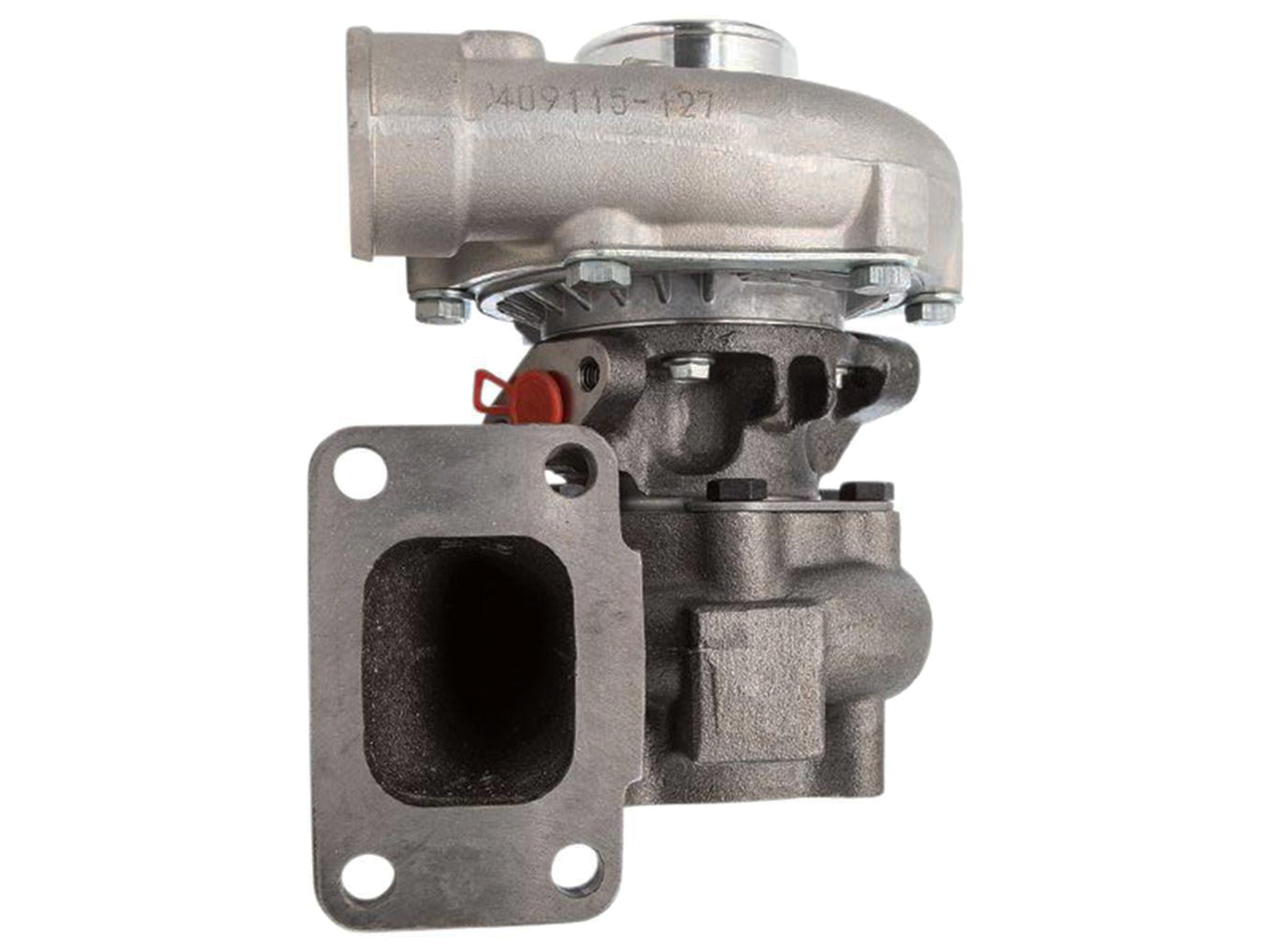

BRAND NEW GENUINE GARRETT TURBOCHARGER

This is a BRAND NEW GENUINE GARRETT TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

Fits the following:

Part Number: 466674-5003
Interchangeable Number: 466674-0003, 466674-5003S, 466674-0006, 466674-5006, 466674-5006S, 466674-0007, 466674-5007, 466674-5007S
OEM Number: 02200880, 0R-4543, 0R4543, 11998071, 2674A147, 2674A317, 7C-3446, 7C3446
Turbo Model: TA3123
Manufacturer: Honeywell-Garrett

Year: 1992-
Engine: 1004, 1004.2T
Engine Manufacturer: Perkins
Displacement: 4 Cylinders
Fuel: Diesel
Power: 97 HP
Speed: 2200 RPM

Angle α (Compressor Housing): 180°
Angle β (Turbine Housing): 120°
Back Plate: 409629-0004
Bearing Housing: 430027-0025 (312379, 407285-0027, 407285-0038, 430027-0022, 430027-0048)(186879, 186881)(Oil Cooled)
CHRA: 409172-0094 (409172-5094S)(1000010385)
Compressor Cover: 409115-0127
Compressor Wheel: 409096-0008 (1100030401, 197611, 103016-0000)(Ind. 40.51 mm, Exd. 60.09 mm, Trim 5.15, 6+6 Blades, Super Back)
Gasket (Oil Inlet): 210023 (147837, 52231586500)
Gasket (Oil Outlet): 210021 (148062, 311496)
Gasket (Turbine Inlet): 409039-0001 (409039-0000, 210019, 2405022)
Heat Shield: 409627-0000 (103121-0000, 409627-0001)
Repair Kit: 468139-0000 (1100030750)
Turbine Housing A/R: 0.48
Turbine Housing: 409526-0001
Turbine Wheel: 451310-0004 (451310-0003, 451310-0005, 451310-0006)(Ind. 65 mm, Exd. 49.09 mm, Trim 10.16, 11 Blades)

Application:
1992- JCB Offway, Various with 1004.2T Engine
1992- Perkins Offway, Various with 1004.2T Engine
JCB 407, 409, 409FM, 409TM, 415, 425 Wheel Loader
JCB 410, 420, 425 Dozer
JCB 505-19 F.M Loadall

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
