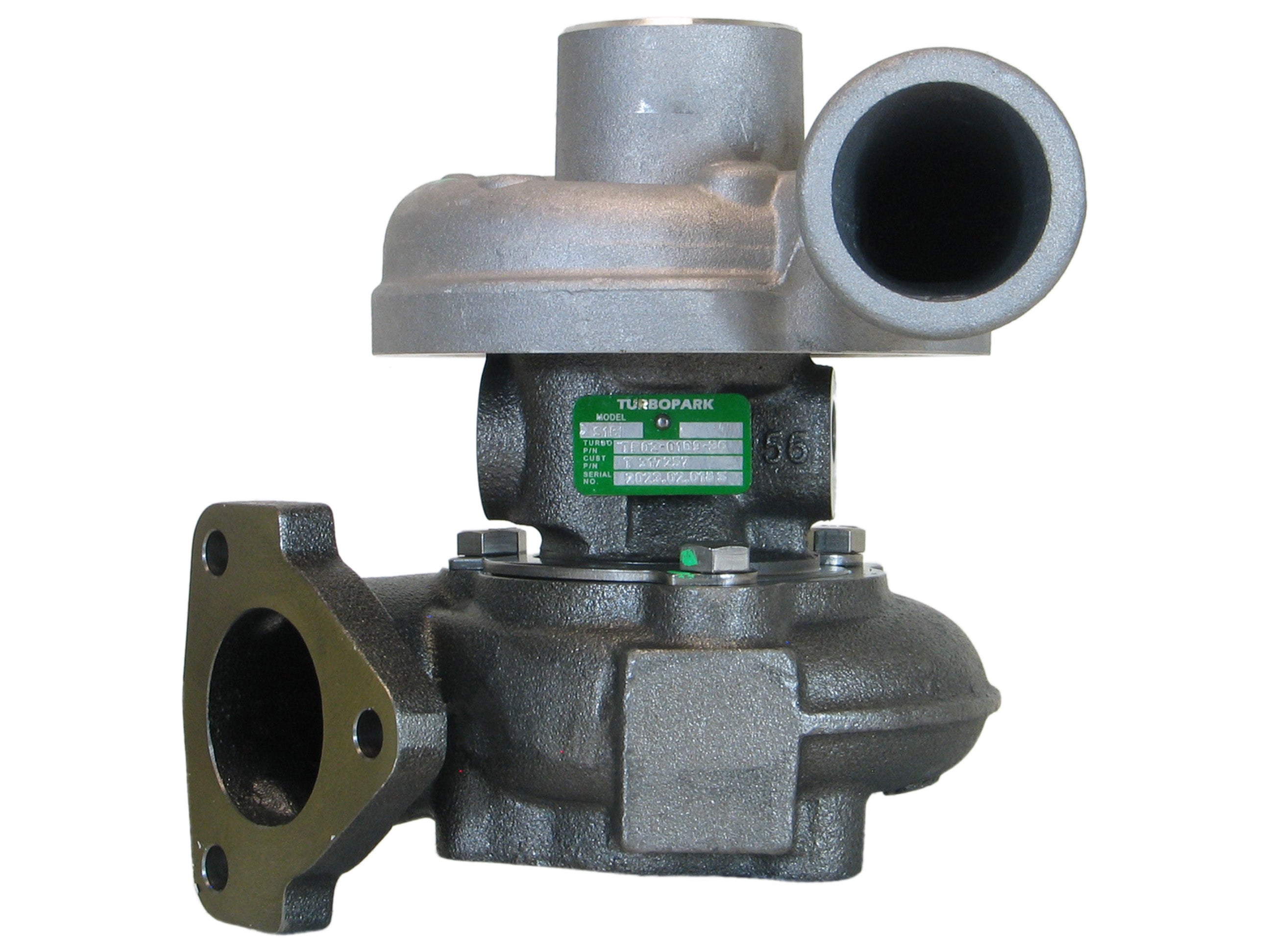

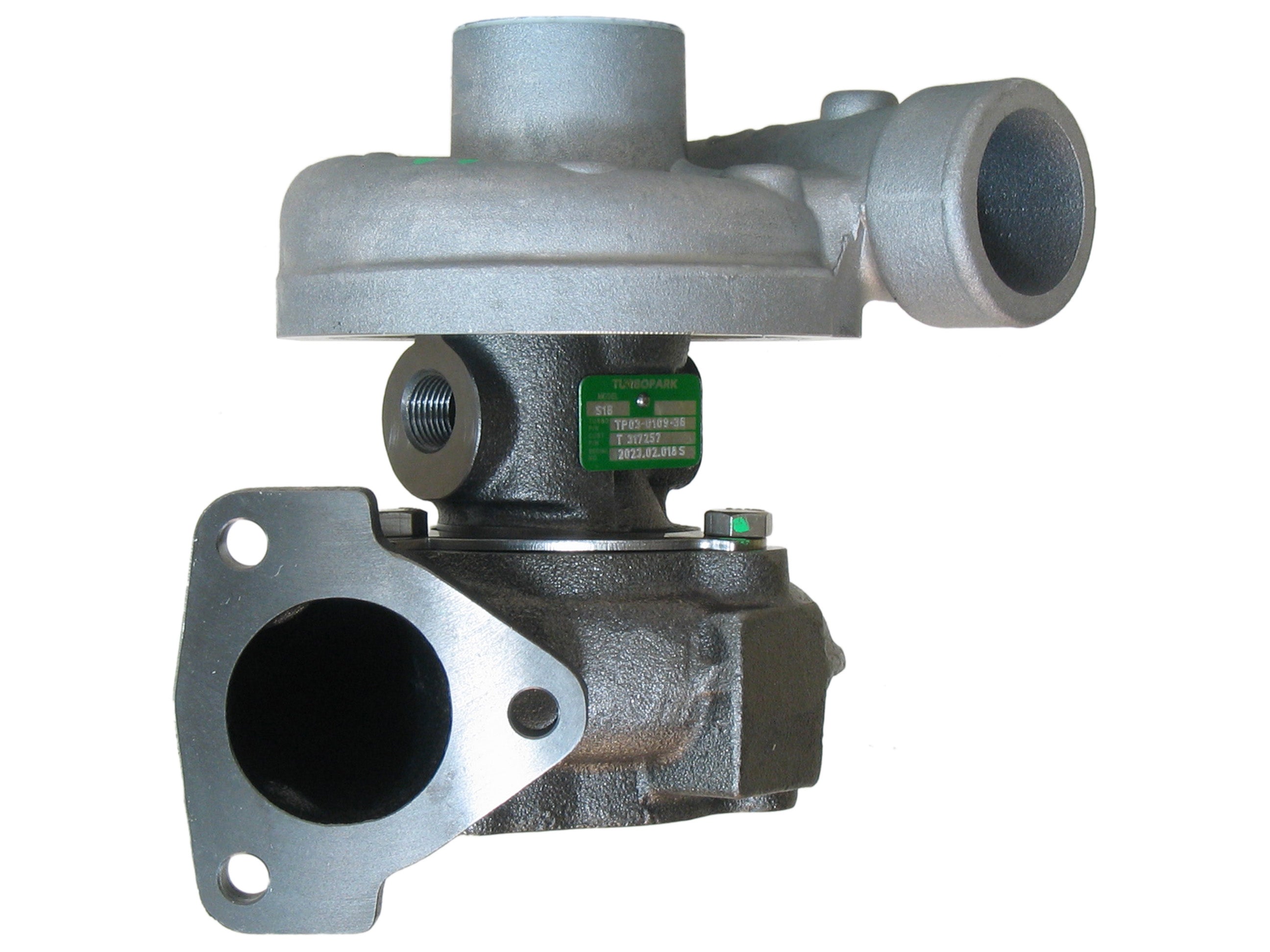

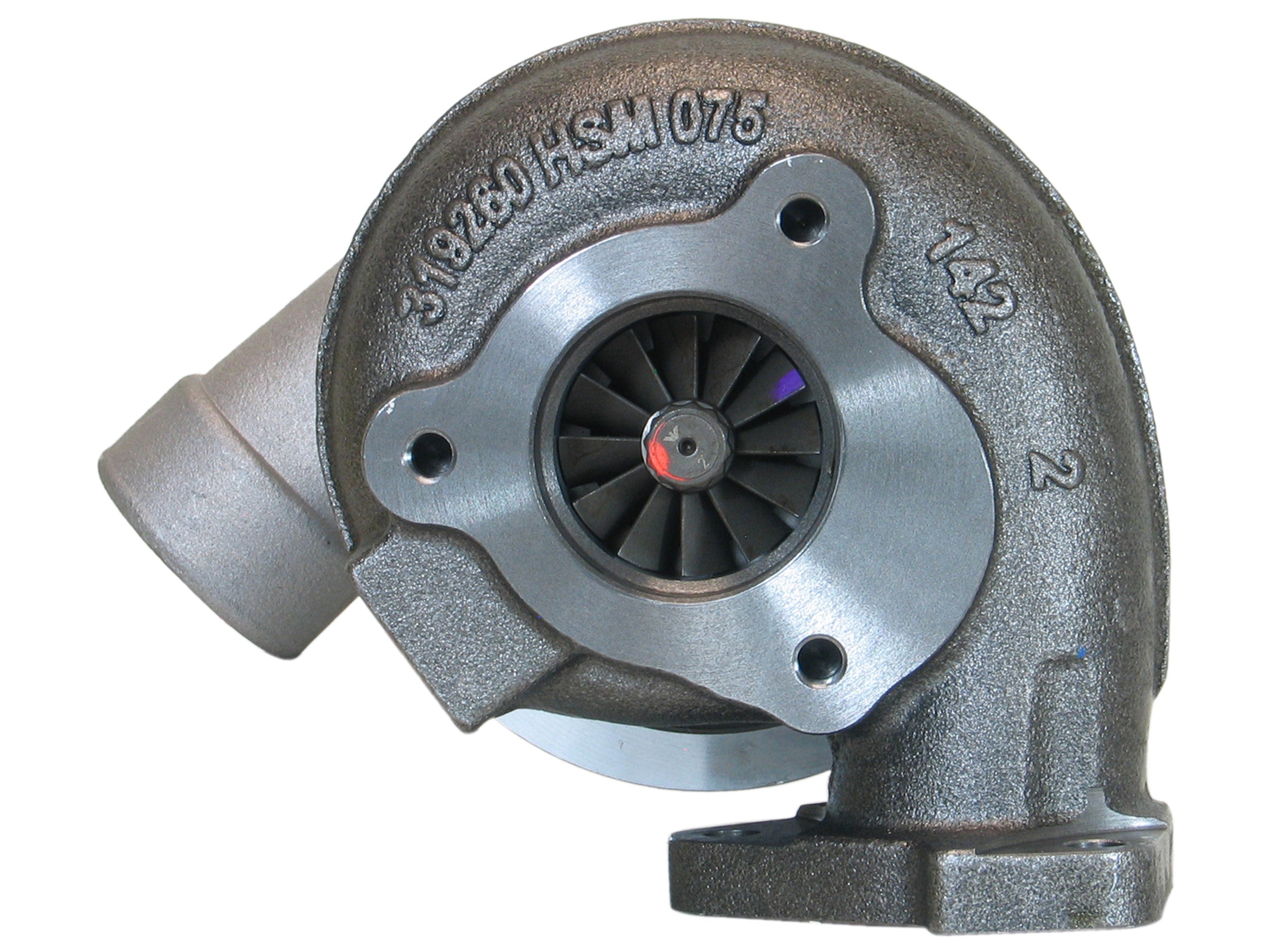

Large variety NEW S1B Turbo CAT Skid Steer 3034 Perkins Industrial 704-30T 2.95L Diesel 317257

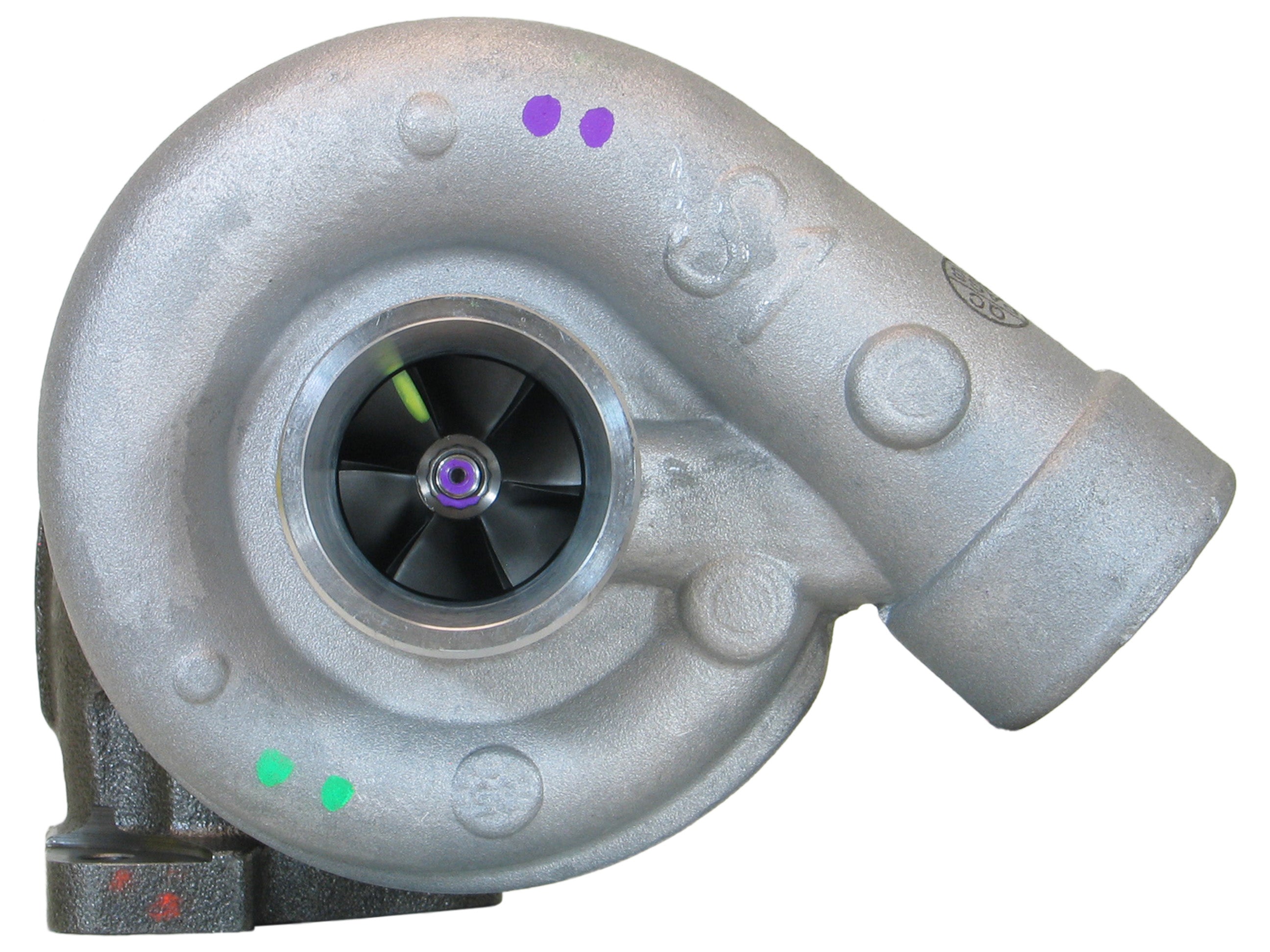

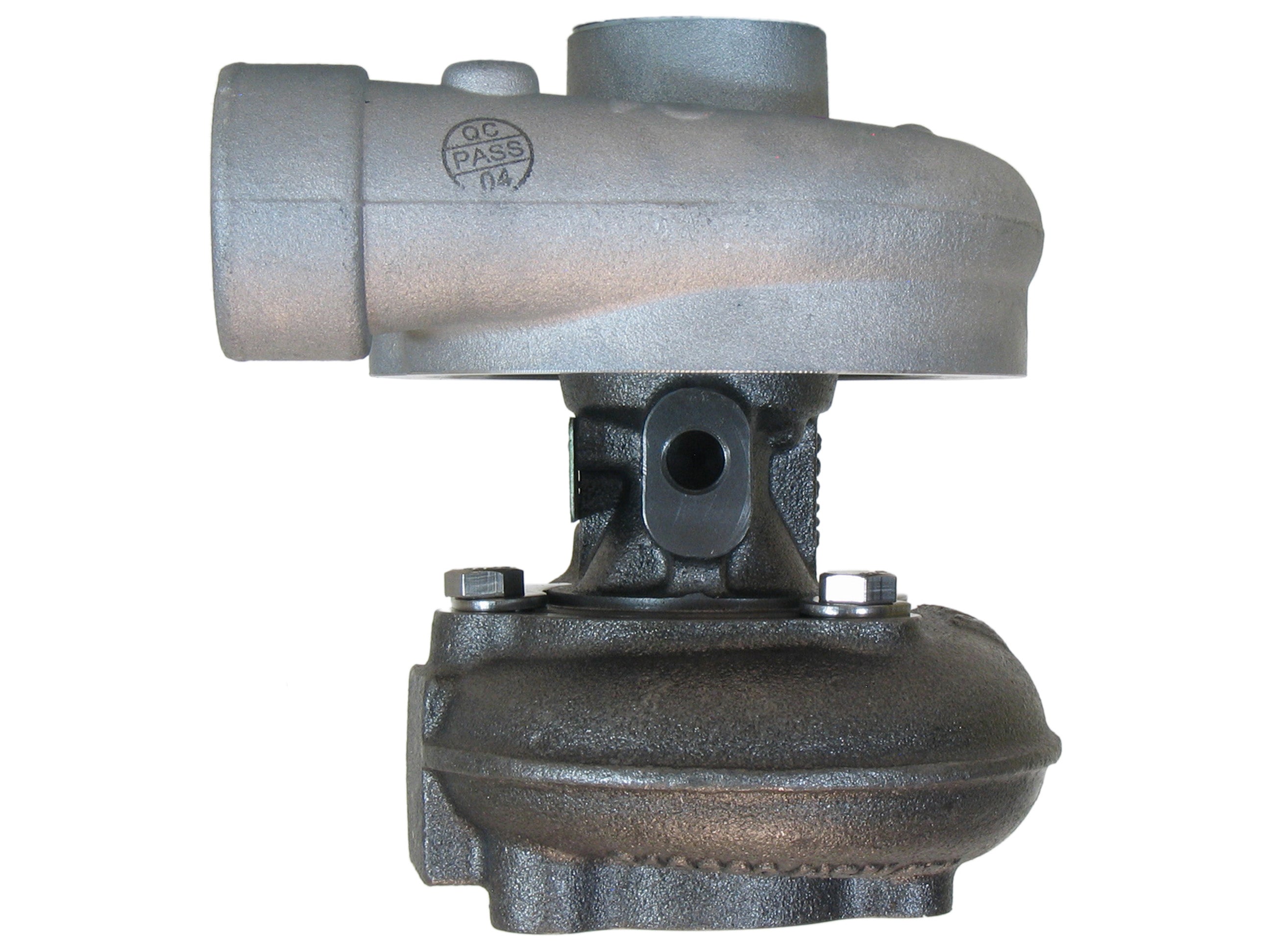

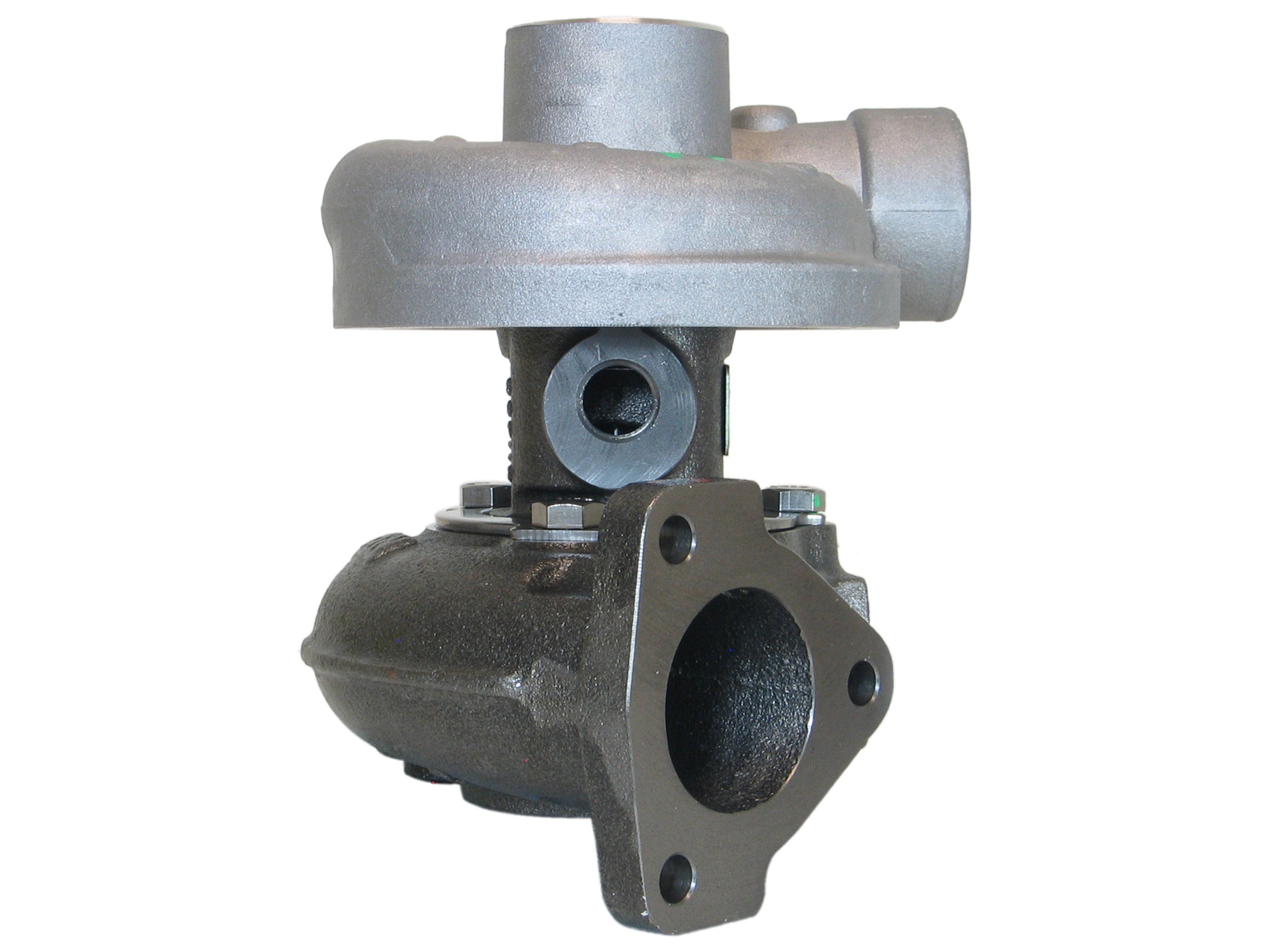

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

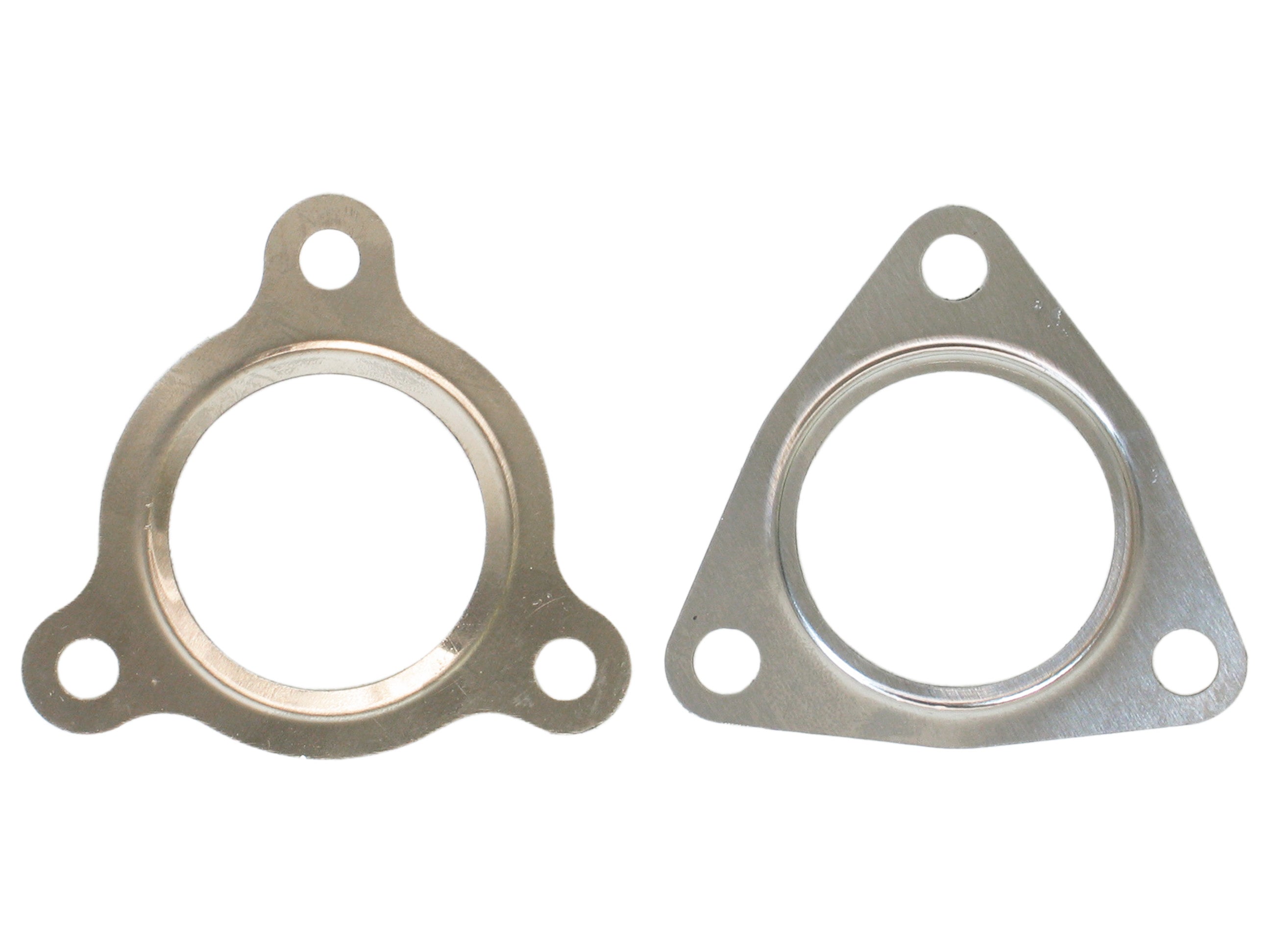

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 317166
Interchangeable Number: 317257, 317258
OEM Number: 173-0442, 1730442, 19511069, 2674A177
Serial Number: 11F02-1523
Turbo Model: S1B

Year: 1998-08
Engine: 704-30T
Displacement: 2.95L, 2950 ccm
Fuel: Diesel
Power: 60 kW/81 HP

Angle α (Compressor Housing): 357°
Angle β (Turbine Housing): 45°
Back Plate: 315910 (196872)(1252201300, 1800016064)
Bearing Housing: 313244 (Oil Cooled)
CHRA: 317258 (316695)
Compressor Cover: 317208
Compressor Wheel: 316102 (Ind. 35.9 mm, Exd. 48.3 mm, 6+6 Blades, Billet)
Gasket (Turbine Inlet): 312746 (Inox Steel)
Gasket Kit: 318421
Heat Shield: 311863 (1252201340, 2030016099)
Repair Kit: 318374 (312943, 315360, 313809)(1252201751, 5000030016)
Turbine Housing: 317209
Turbine Wheel: 312880 (Ind. 47 mm, Exd. 40 mm, Trim 6.09, 12 Blades)(1100016215)

Application:
1998-08 Perkins Industrial with 704-30T Engine
Caterpillar 236, 262, 277 Skid Steer

TurboTurbos Part Number: TP03-0109-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
