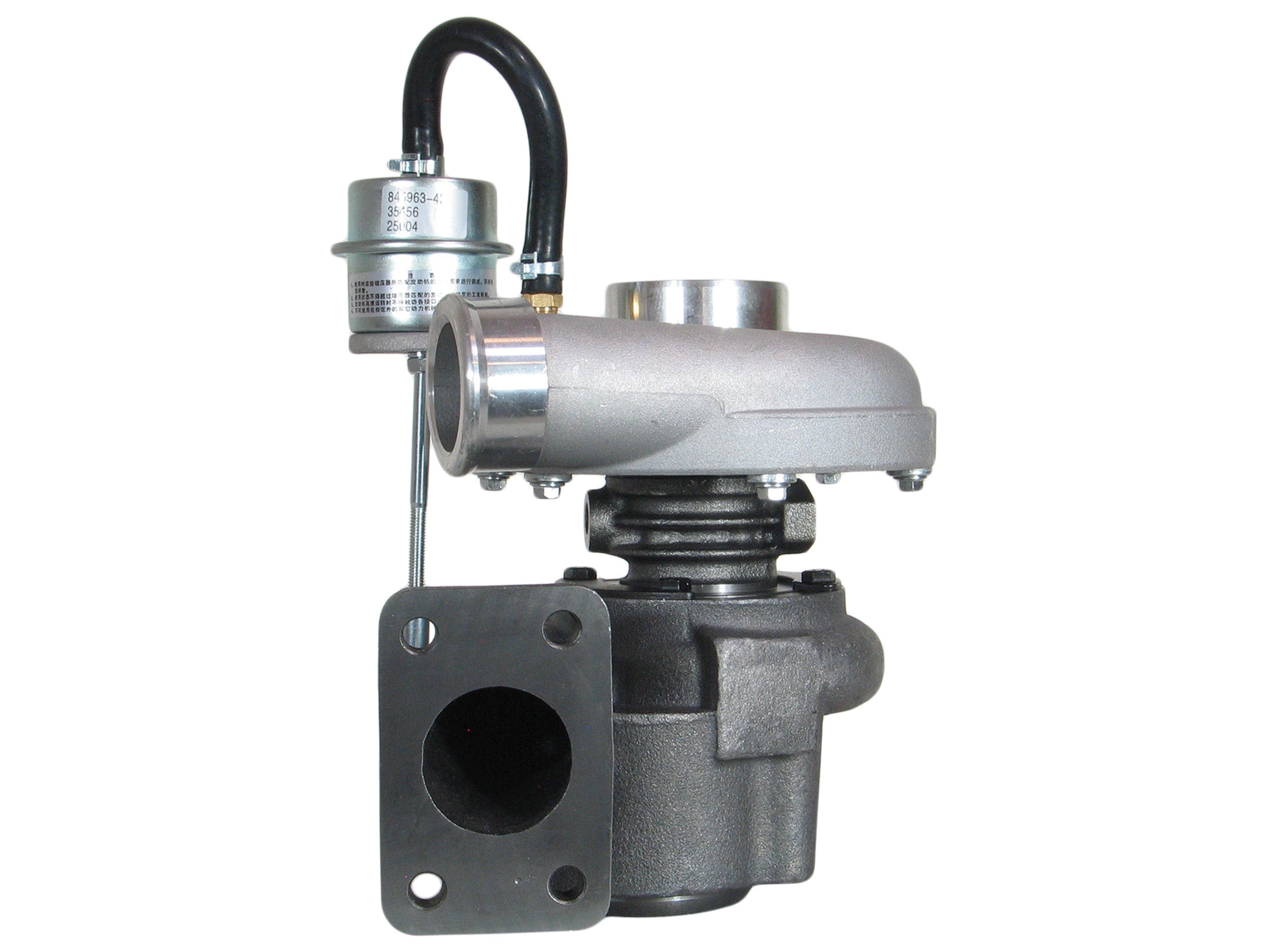

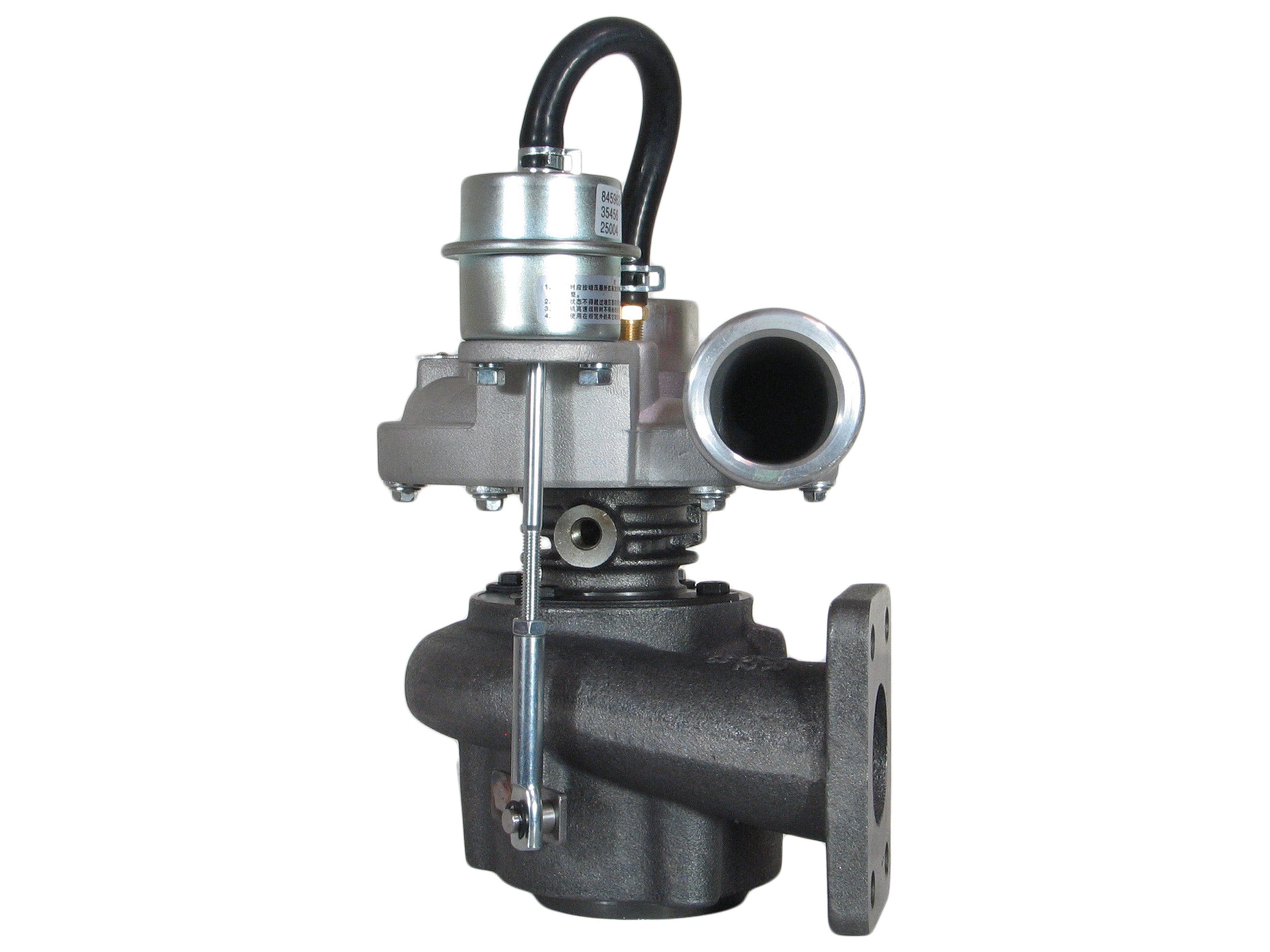

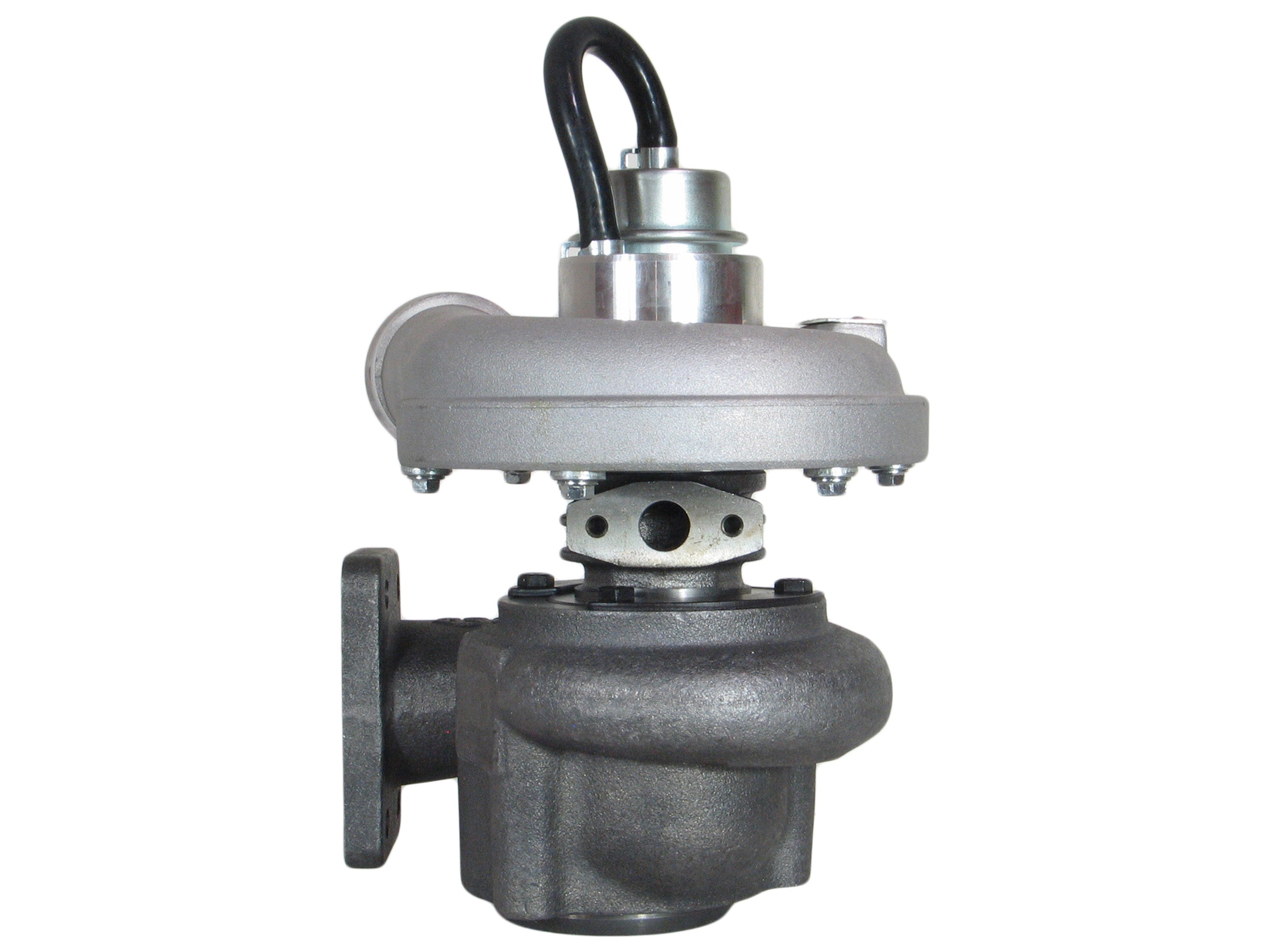

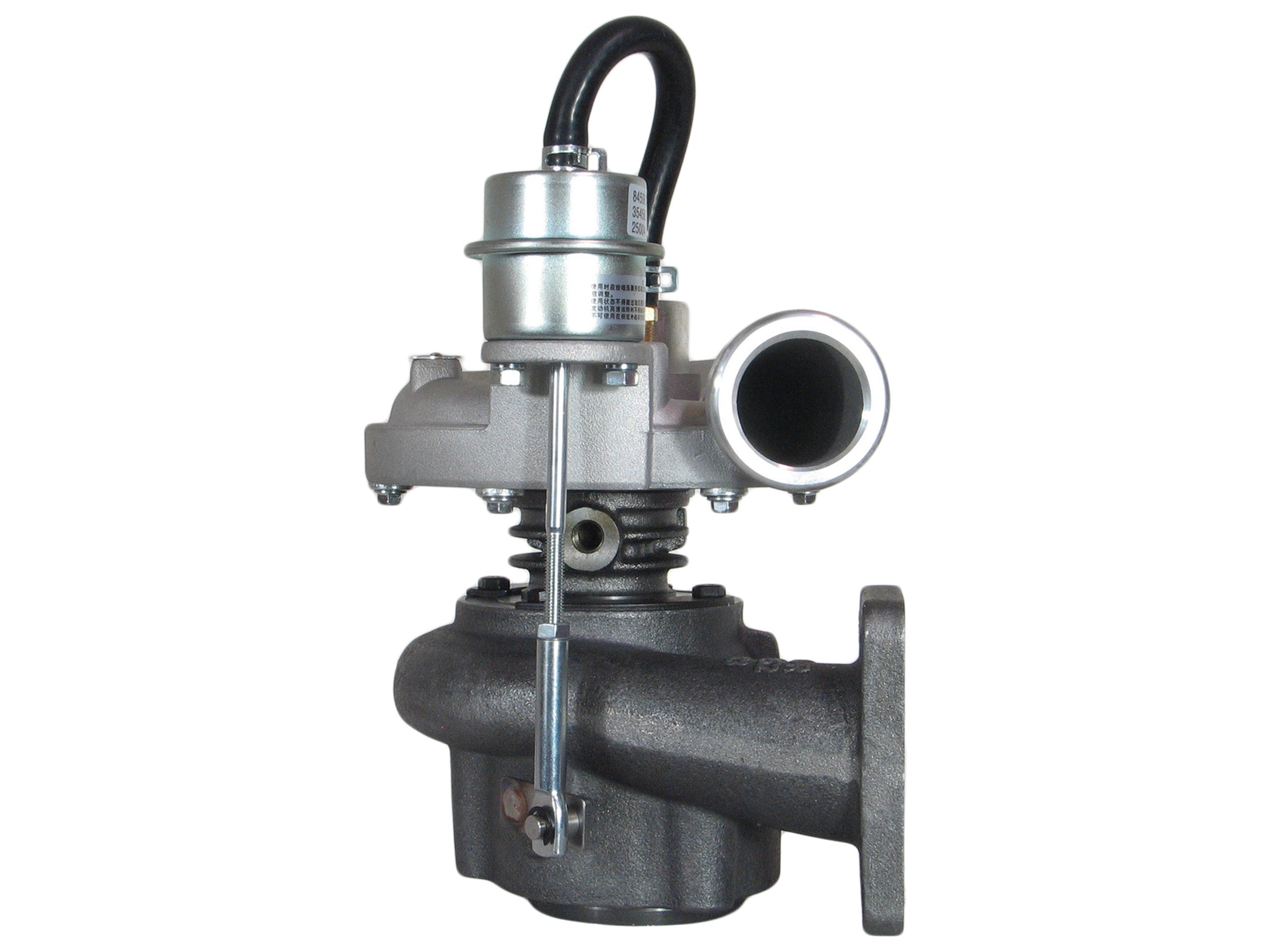

Customer-first approach NEW TB0223 Turbo Hallberg-Rassy Boat Volvo Penta Ship TMD22PC 2.0L 466770-5006

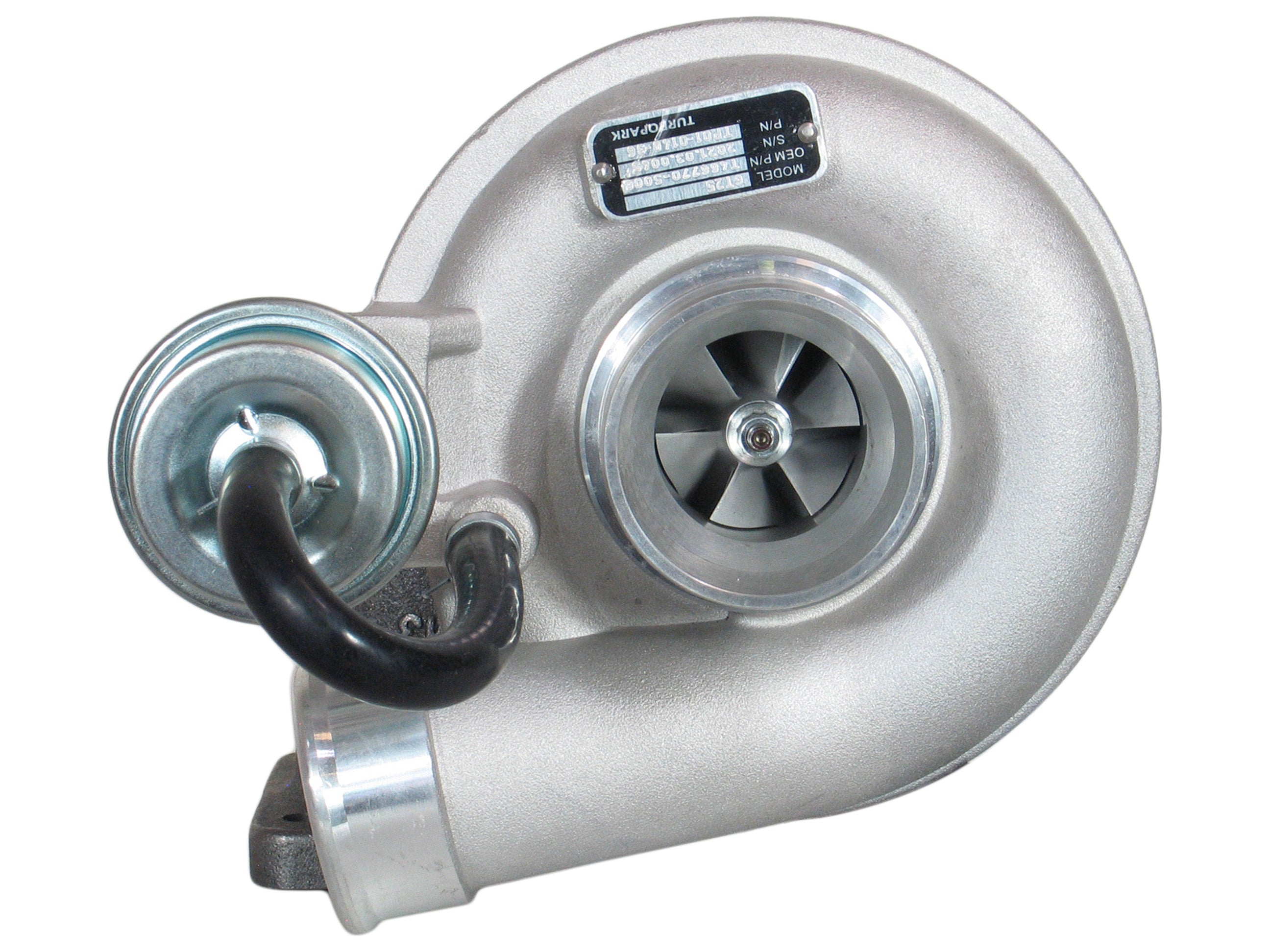

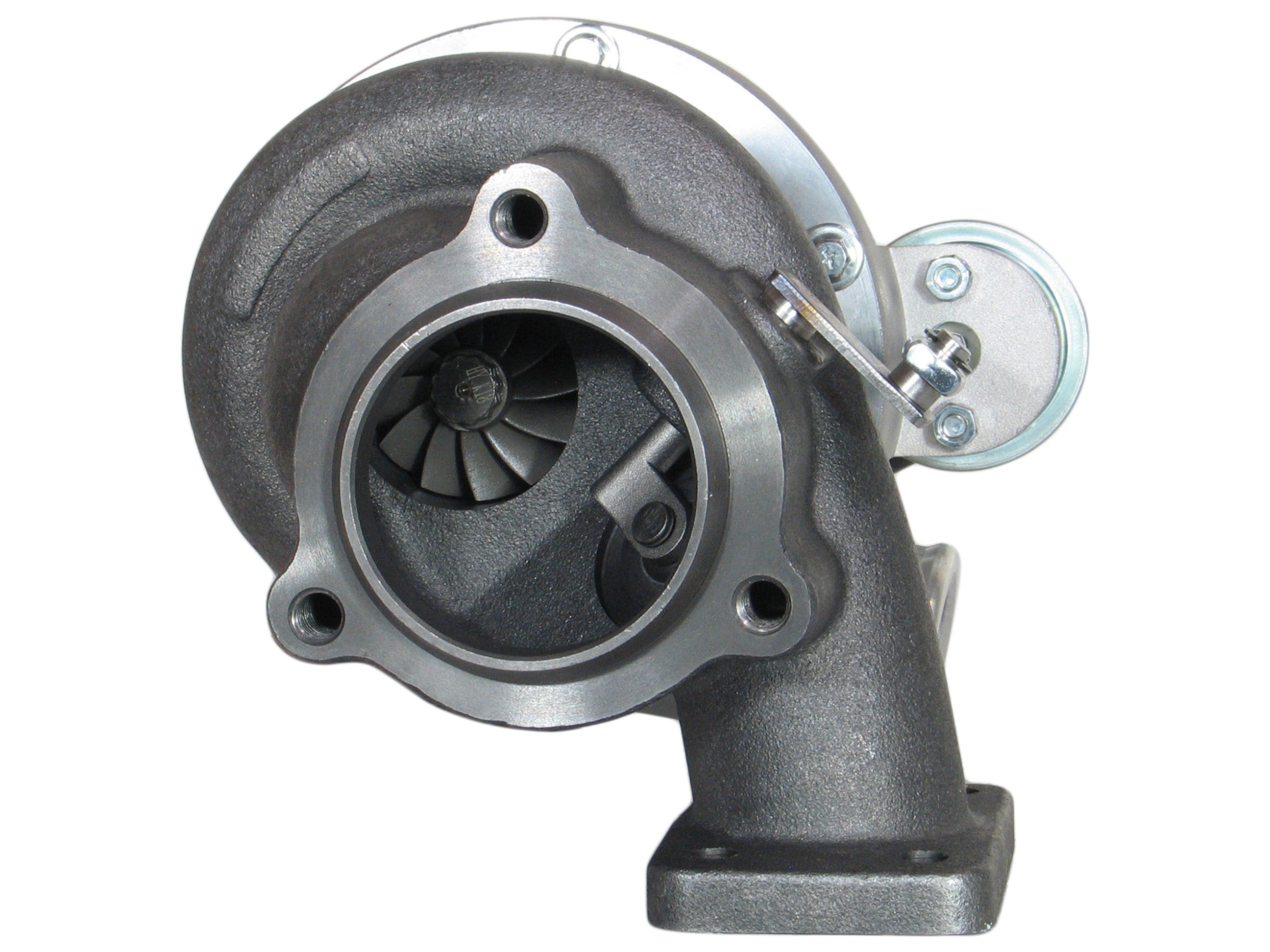

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

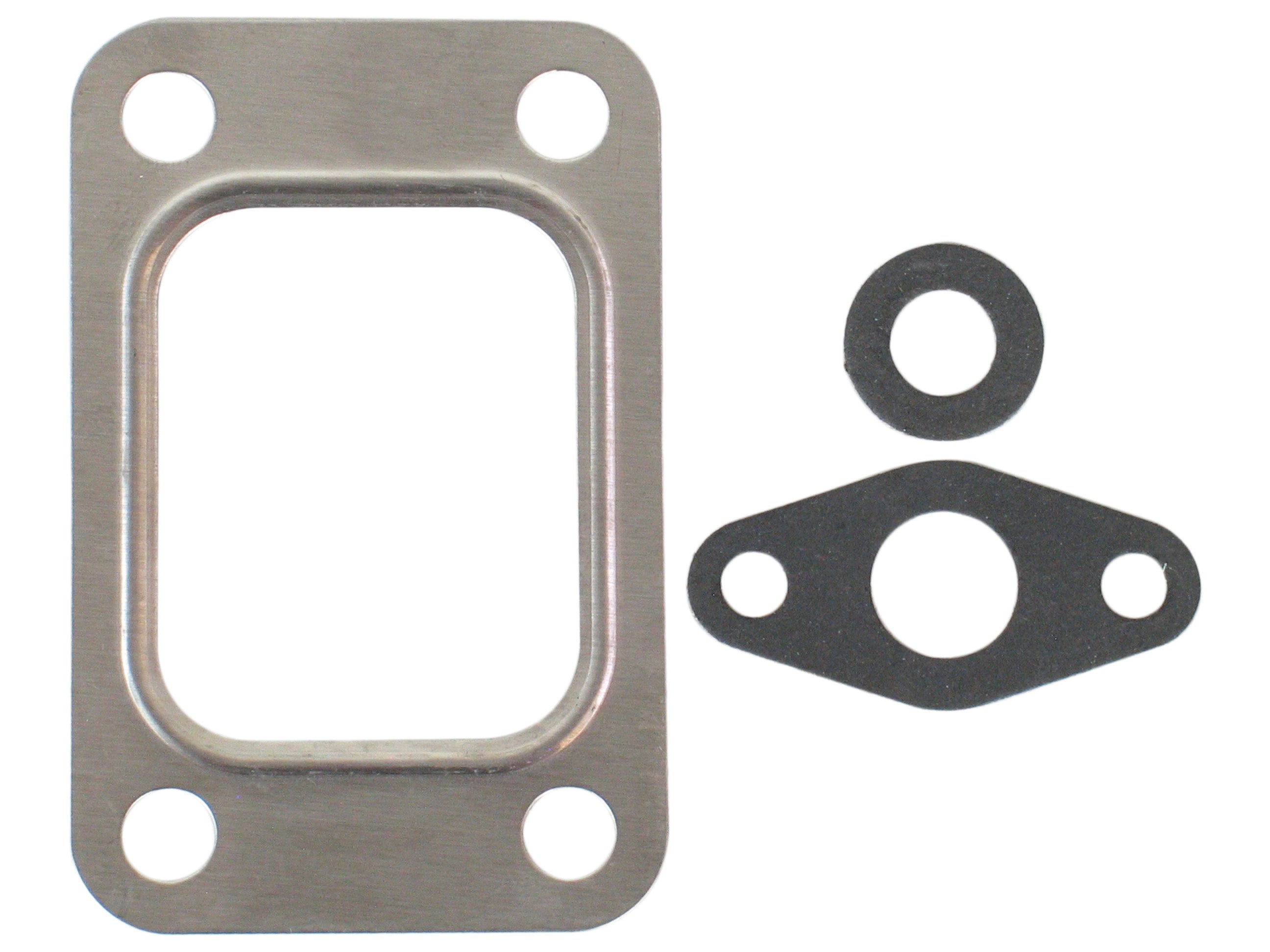

NOTE: This turbocharger package also comes with the gaskets.

Fits the following:

Part Number: 466770-5006S
Interchangeable Number: 466770-0006, 466770-5006S, 466770-0002, 466770-5002, 466770-5002S, 466770-0004, 466770-5004, 466770-5004S
OEM Number: 2674A117, 2674A120, 2674A120R, 3581150, 861407
Turbo Model: TB0223

Year: 1993-95
Engine: T4.20, T4.20-L4, TMD22A, TMD22PC
Displacement: 2.0L, 1994 ccm
Power: 78 kW/109 HP

Angle α (Compressor Housing): 263°
Angle β (Turbine Housing): 105°
Actuator: 430819-0105
Back Plate: 432280-0001 (430612-0003)(1100025300, 1800016012)
Bearing Housing: 432257-0009 (430936-0008)(Oil Cooled)(1900011121B)
CHRA: 443854-0028 (443854-5028S)
Compressor Cover: 409589-0147
Compressor Wheel: 410450-0014 (410450-0001)(Ind. 37.18 mm, Exd. 48 mm, Trim 60, 8+8 Blades)(1200016498)
Gasket (Turbine Inlet): 210218 (2445051, 2445334)(Stainless Steel)
Gasket (Turbine Outlet): 210217 (2445284)(Stainless Steel)
Heat Shield: 430871-0002 (431055-0001, 431055-0003)
Repair Kit: 709143-0001 (707903-0002, 200423-0000)(Dynamic Seal)(1100025761, 5000010106)
Turbine Housing A/R: 0.35
Turbine Housing: 430609-0130

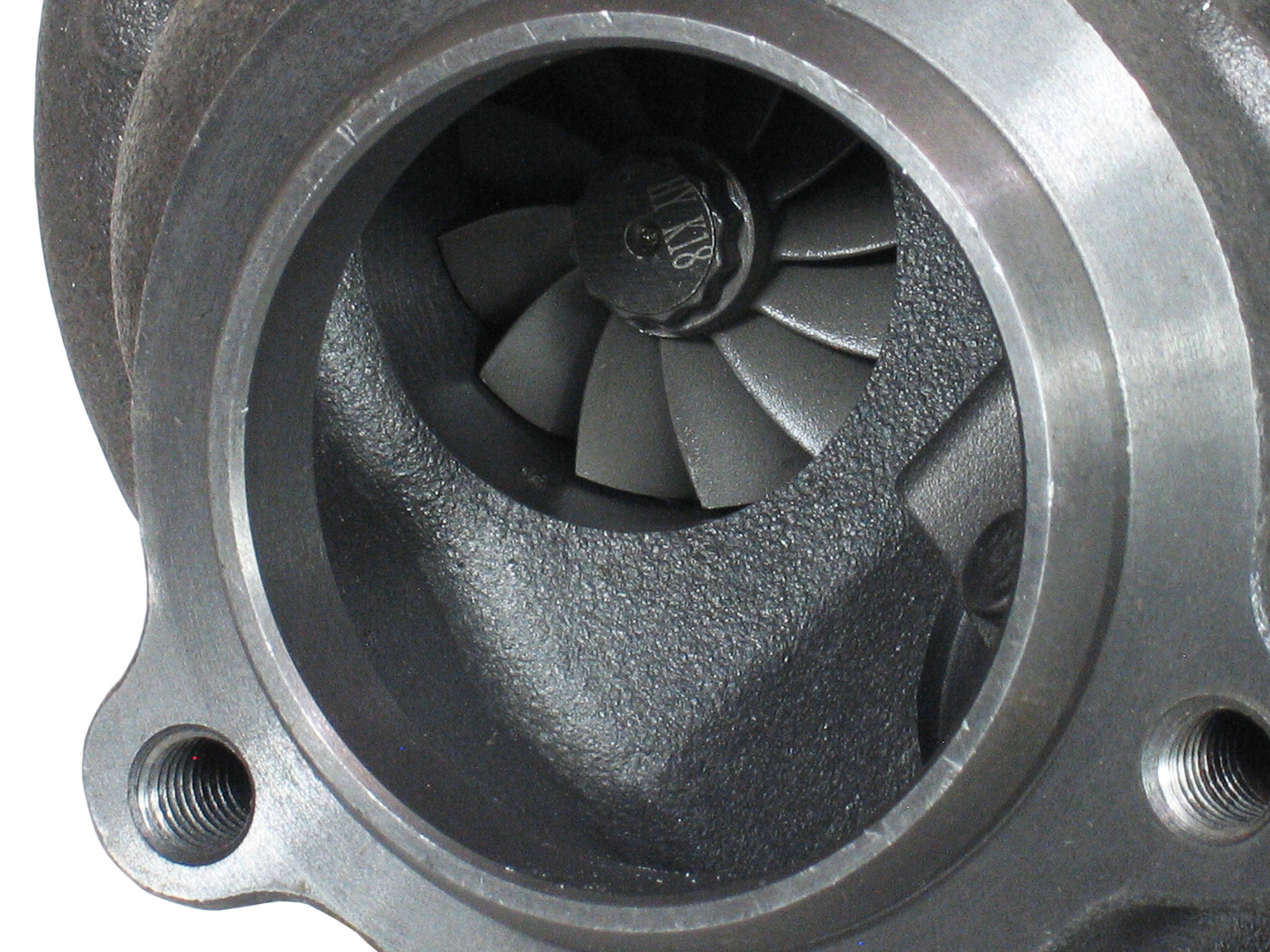

Turbine Wheel: 435243-0004 (435243-0001, 435243-0002, 435259-0001, 435243-0005, 435737-0001, 435737-0006, 443850-0001)(Ind. 35.5 mm, Exd. 47 mm, Trim 56, 11 Blades)(1100020435)
Wastegate Settings (Lift Shaft): 0.38 mm
Wastegate Settings (Pressure): 0.890-0.970 bar

Application:
1993-95 Hallberg-Rassy Boat with TMD22PC Engine
1993-95 Volvo Penta Ship, Perkins Truck with T4.20, TMD22A Engine
Off Highway with T4.20 Engine

TurboTurbos Part Number: TP01-0140-36

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
