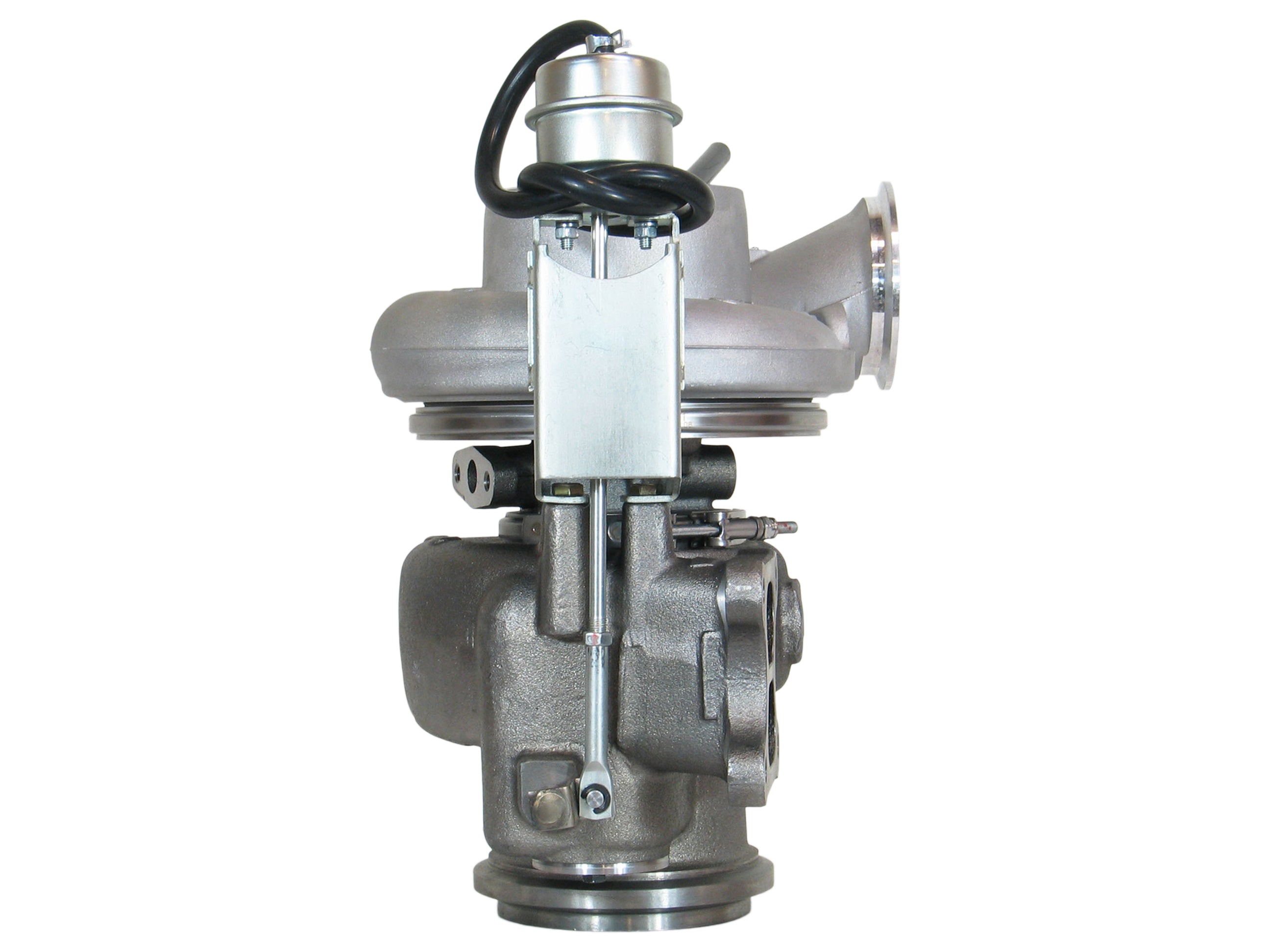

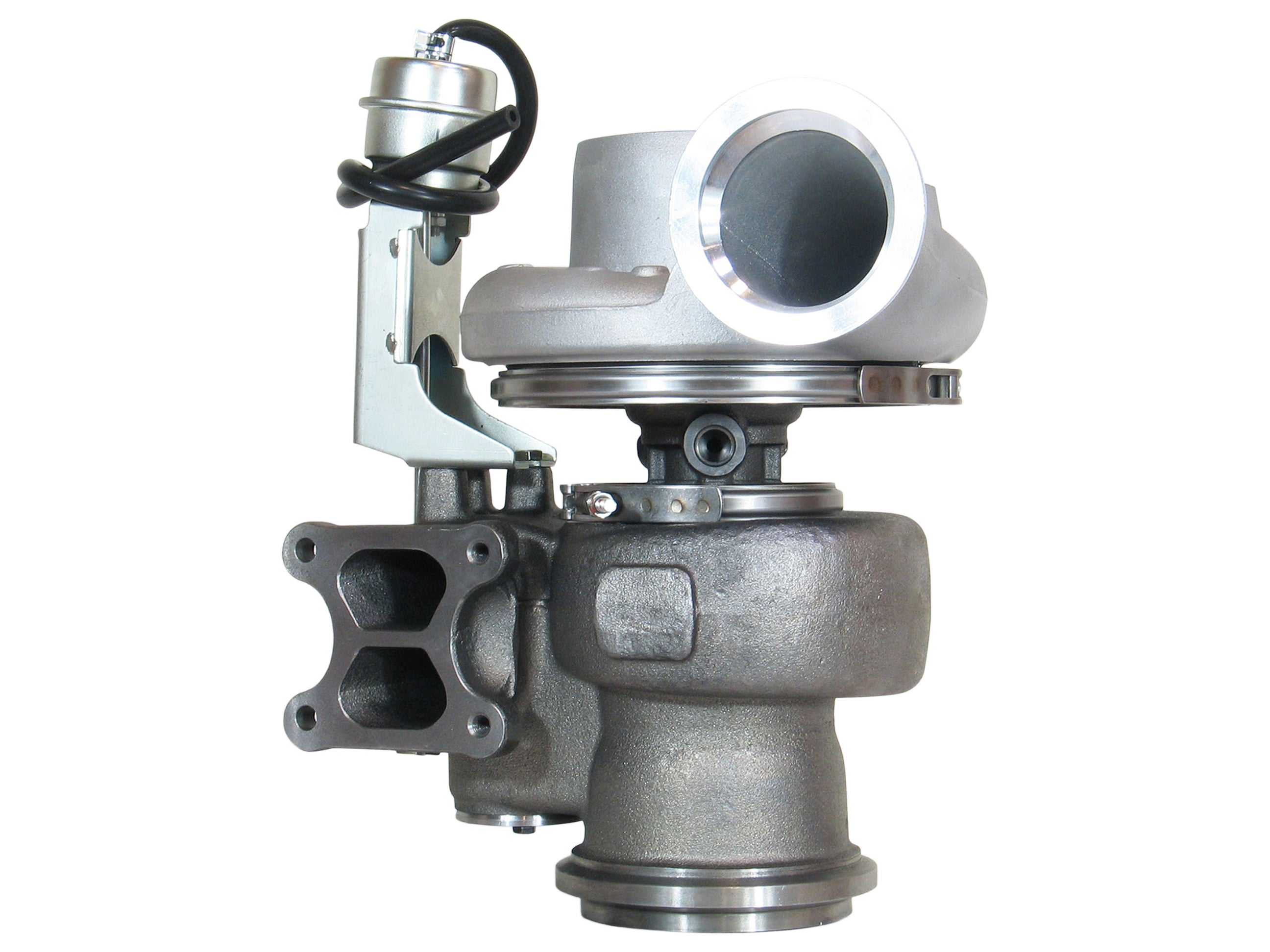

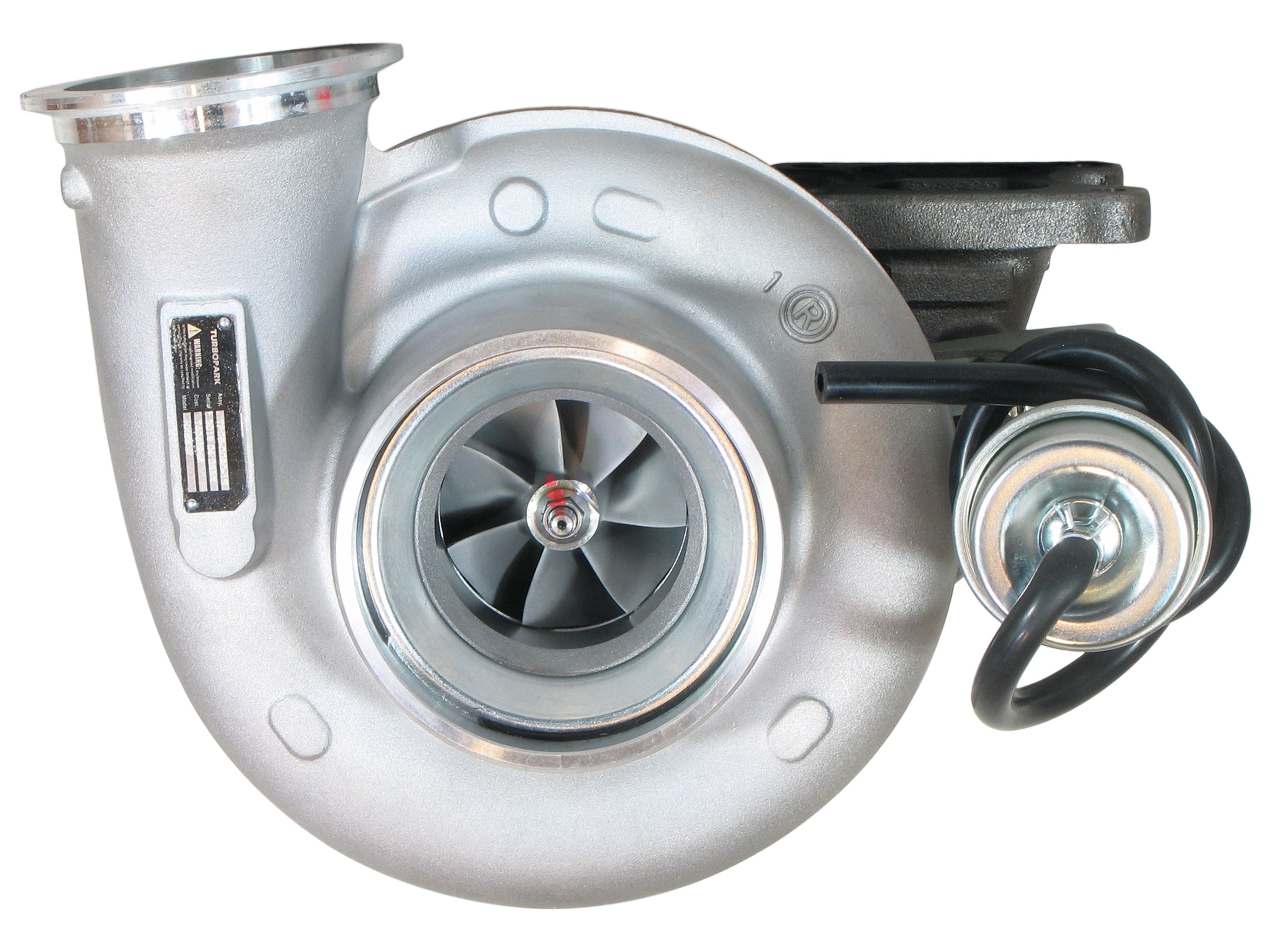

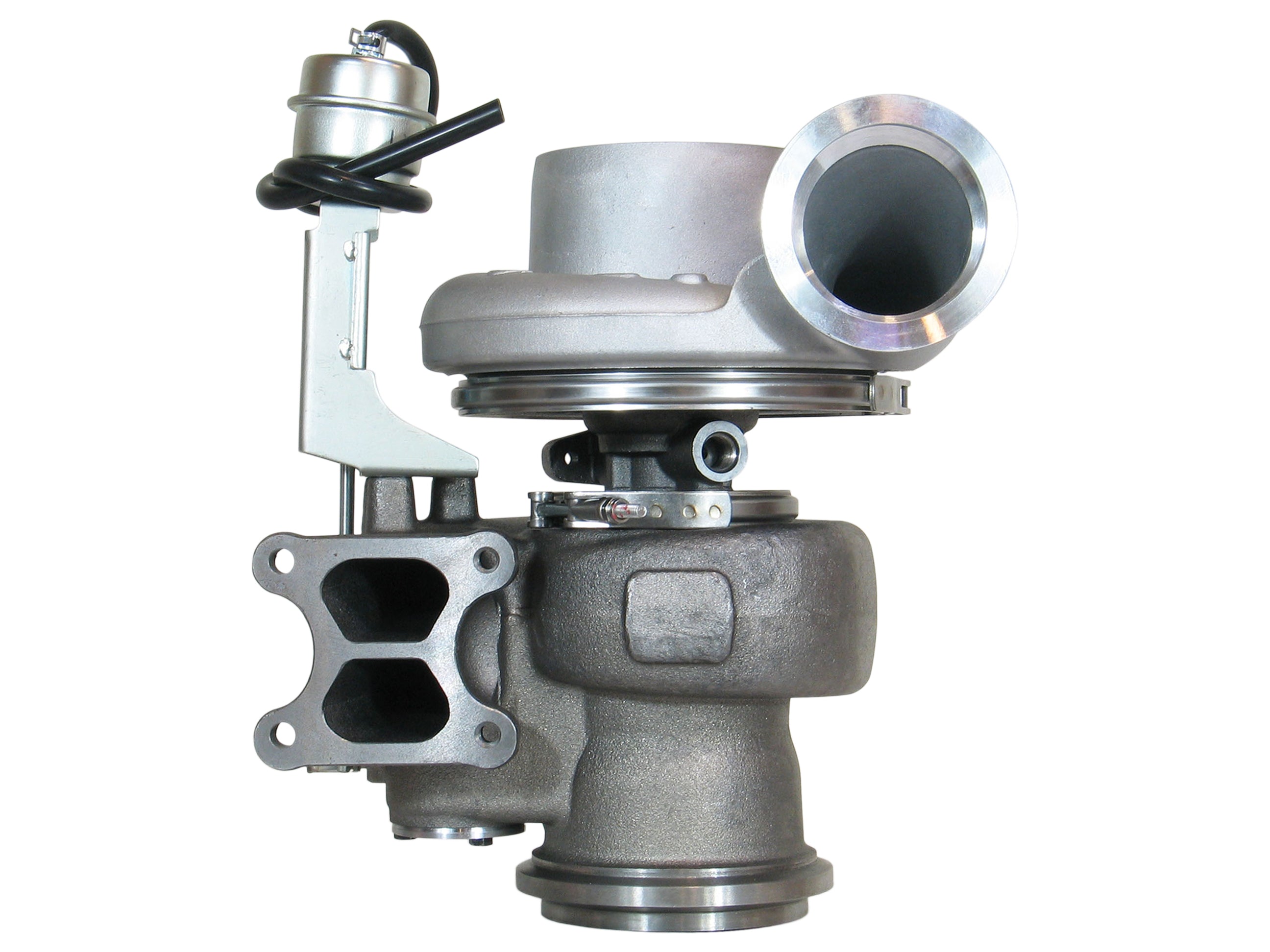

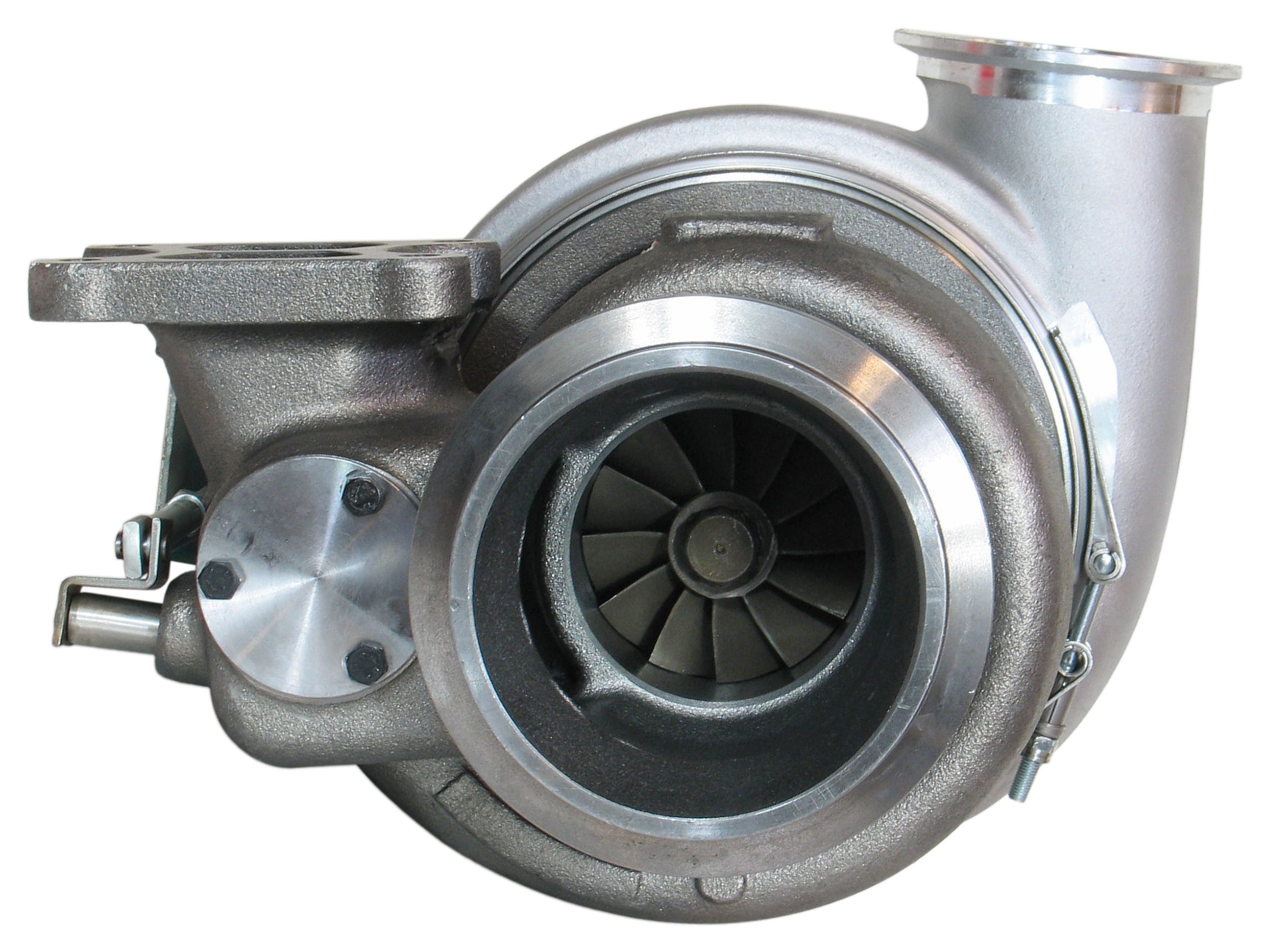

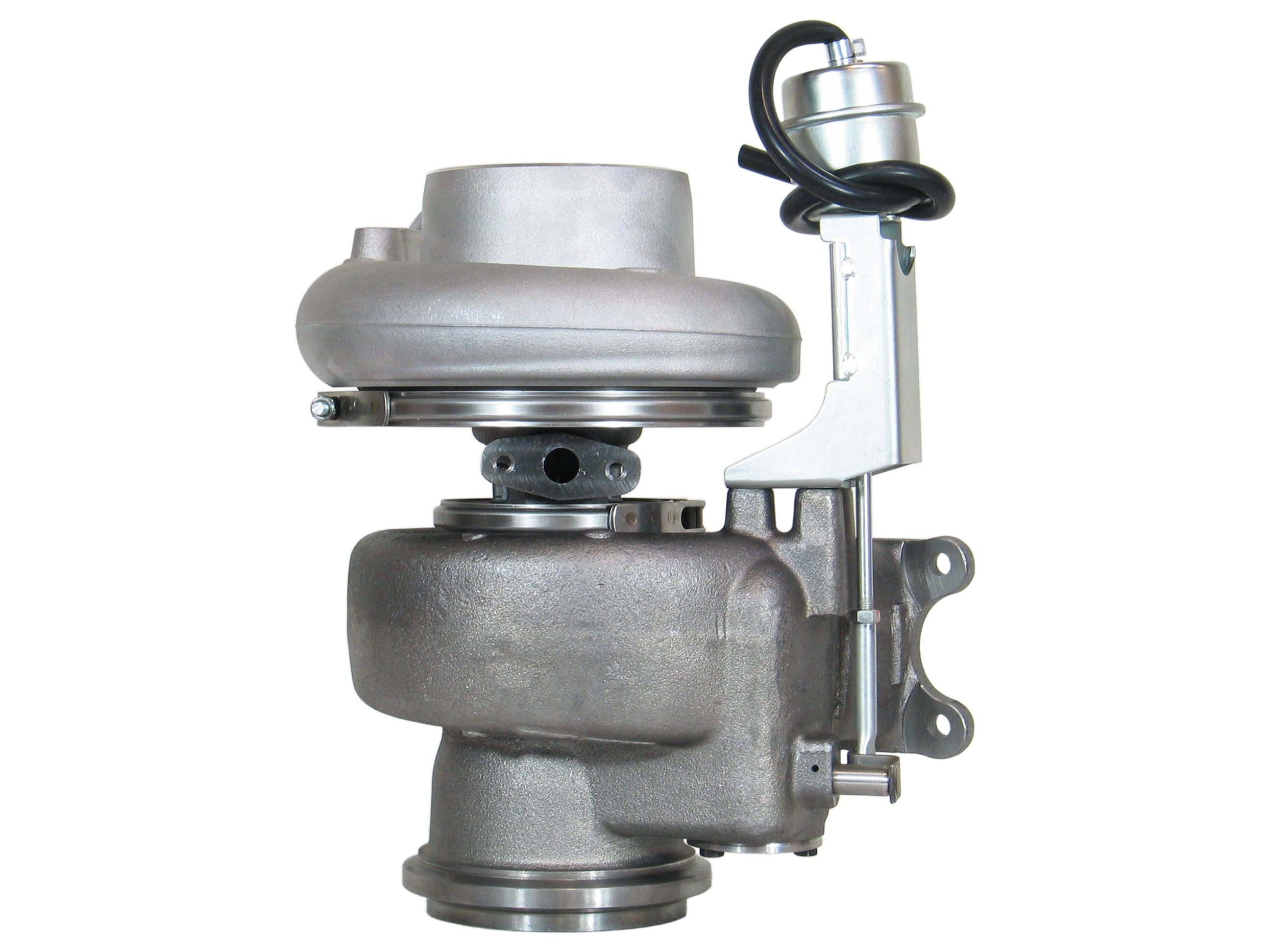

Customer-endorsed NEW HX55W Turbo Dennis Coach Cummins ISX2 Signature 600 Diesel Engine 4040845

NEW DIRECT REPLACEMENT TURBOCHARGER

This is a NEW DIRECT REPLACEMENT TURBOCHARGER. This is an exact, direct fit replacement turbo.

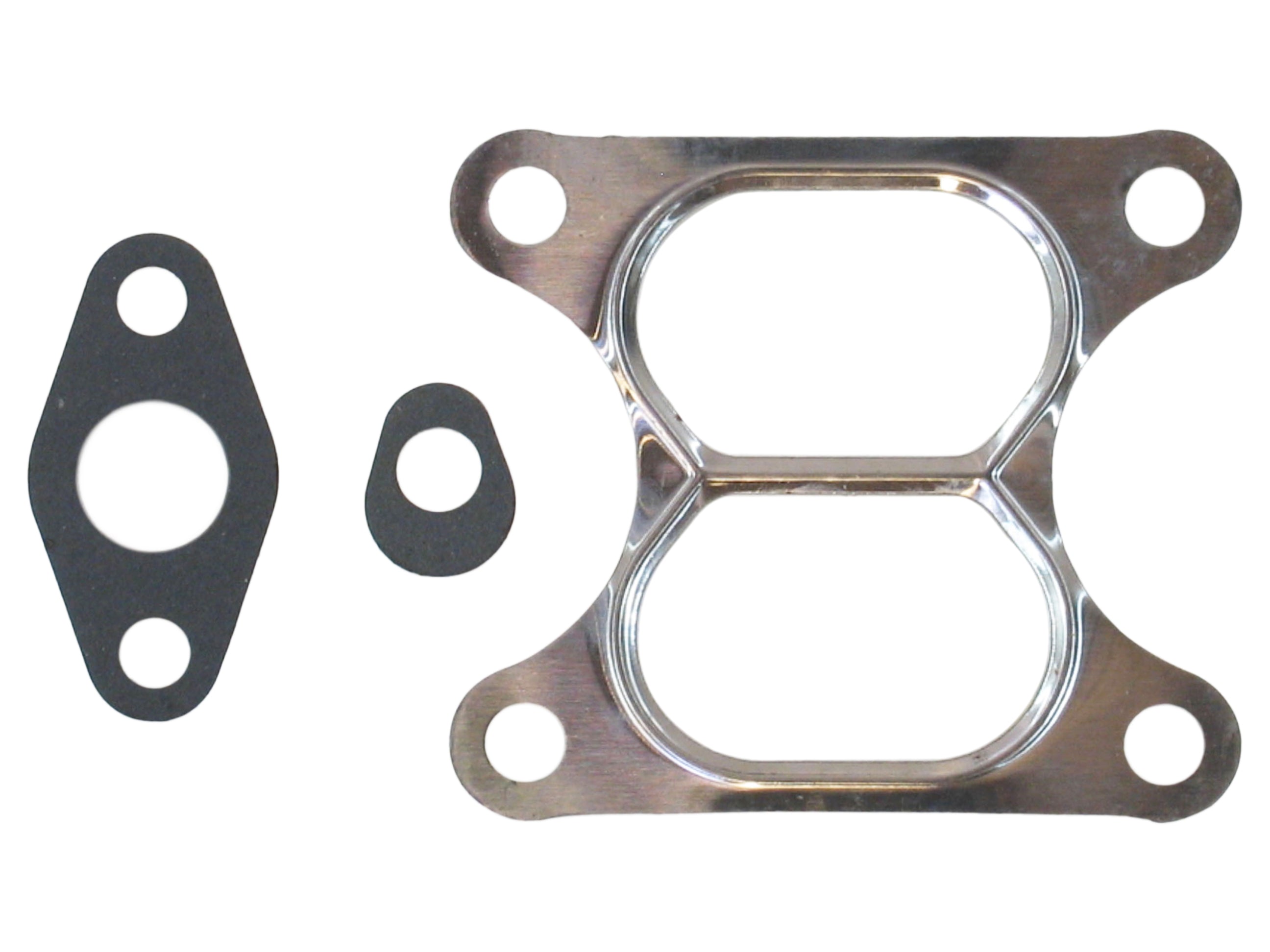

NOTE: This turbocharger package also comes with gaskets.

Fits the following:

Part Number: 4040844
Interchangeable Number: 3596613, 4037480, 4040846, 4046131, 4046132
OEM Number: 4036758, 4040845, 4090042
Replacement Number: 4046127
Turbo Model: HX55W-L9892U/Q25HX15, HX55W

Year: 2003-11
Engine: ISX2, Signature 600
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 270°
Angle β (Turbine Housing): 160°
Back Plate: 3528096 (1153055300)
Bearing Housing: 4027776
CHRA: 4027807
Compressor Wheel: 4036317 (4035887)(Ind. 71 mm, Exd. 99.01 mm, Trim BCCW, 6+6 Blades)
Gasket Kit: 4026884
Heat Shield: 3529846/3533038 (1153055340)

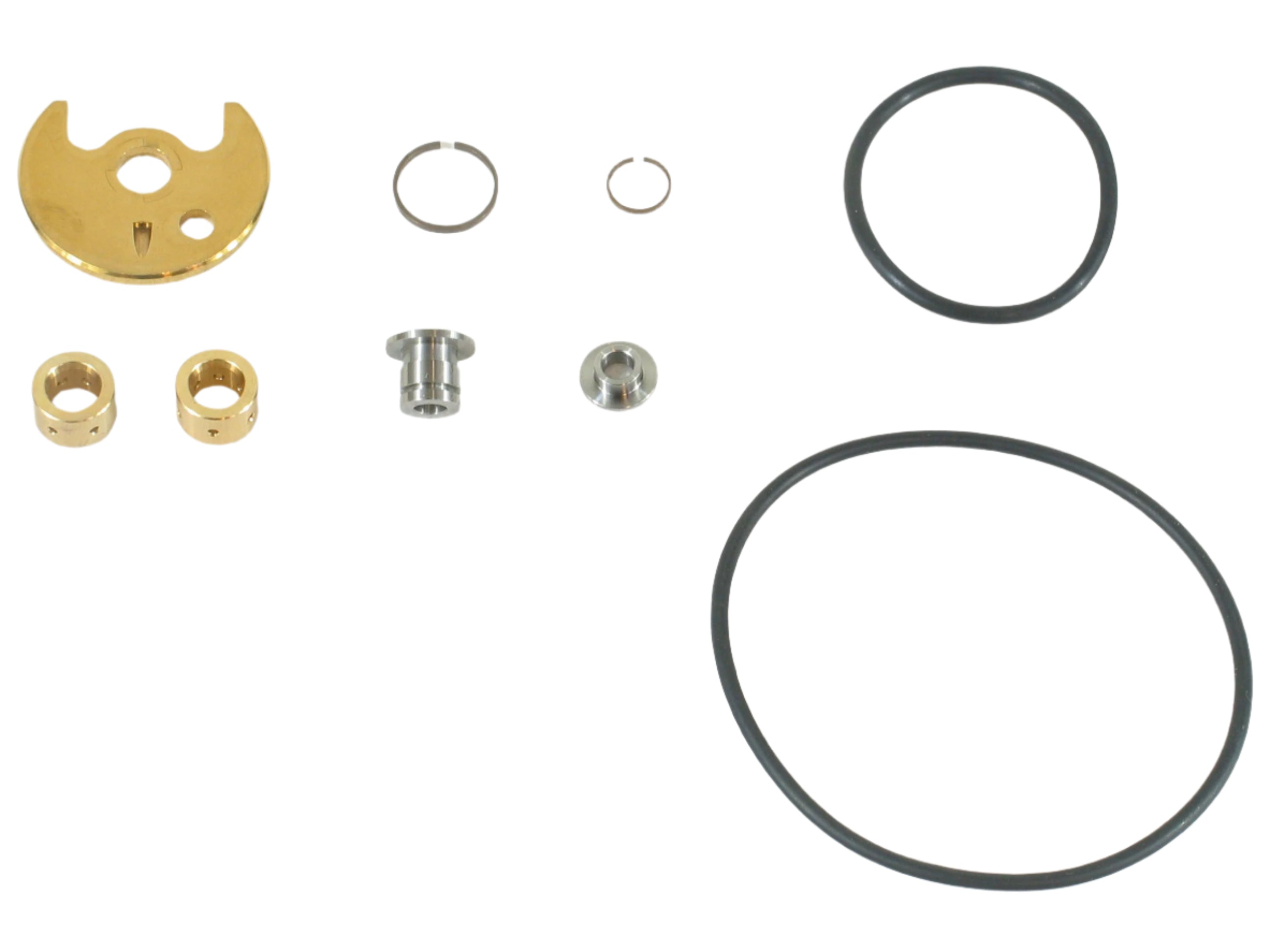

Repair Kit: 3580762/3575181 (358076200, 357518100)(1153055750)
Turbine Housing: 3592774

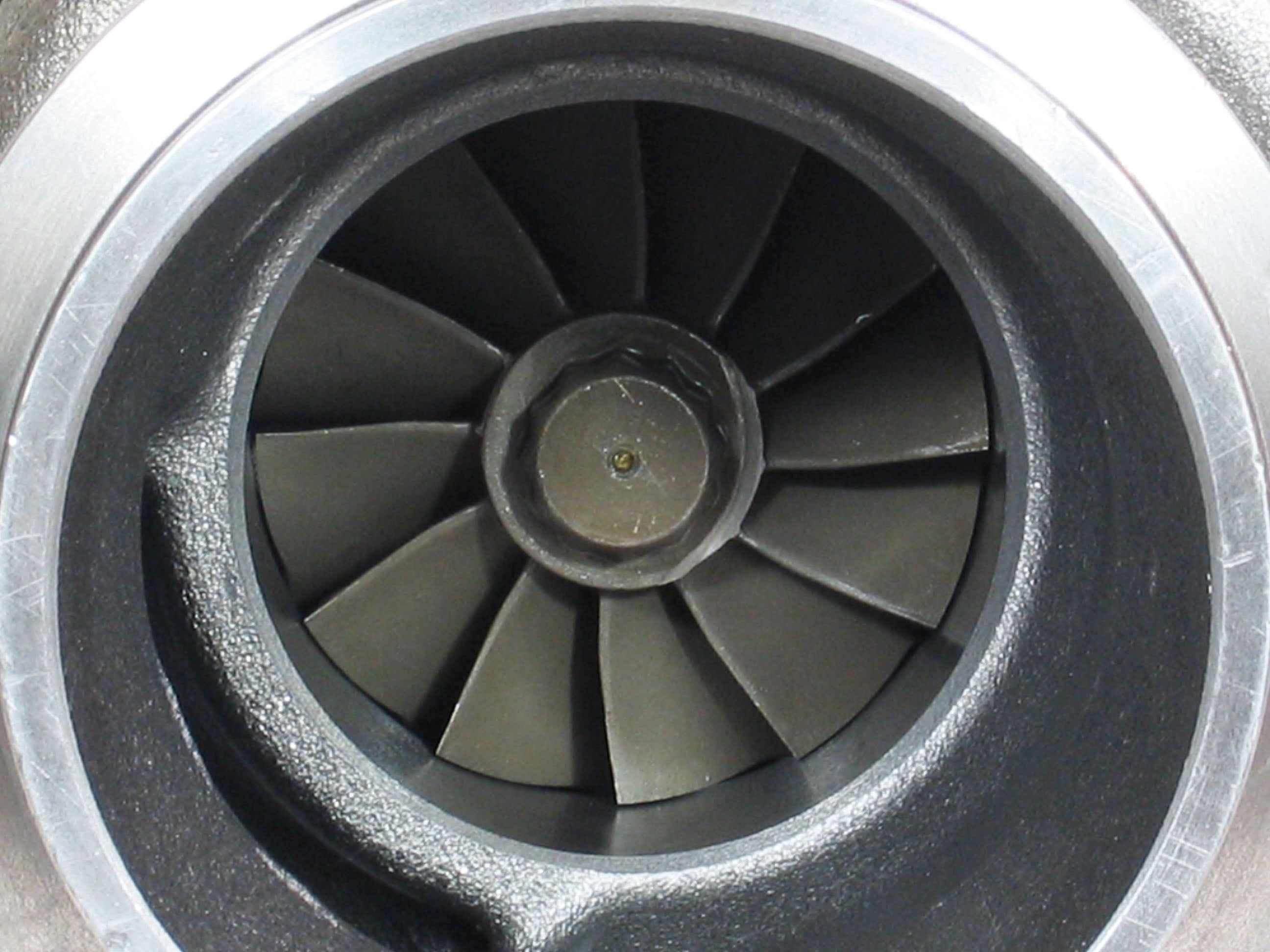

Turbine Wheel: 3539512 (Ind. 85.8 mm, Exd. 79.6 mm, 12 Blades)

Application:
2003-11 Various with Cummins ISX2, Signature 600 Engine
2006-10 Dennis Coach, Various with Cummins ISX2, Signature 600 Engine

TurboTurbos Part Number: TP05-0080-12

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
