Customer satisfaction NEW Holset HX40W Turbo Truck Bus Cummins L360 L325 20 4048335 4051033

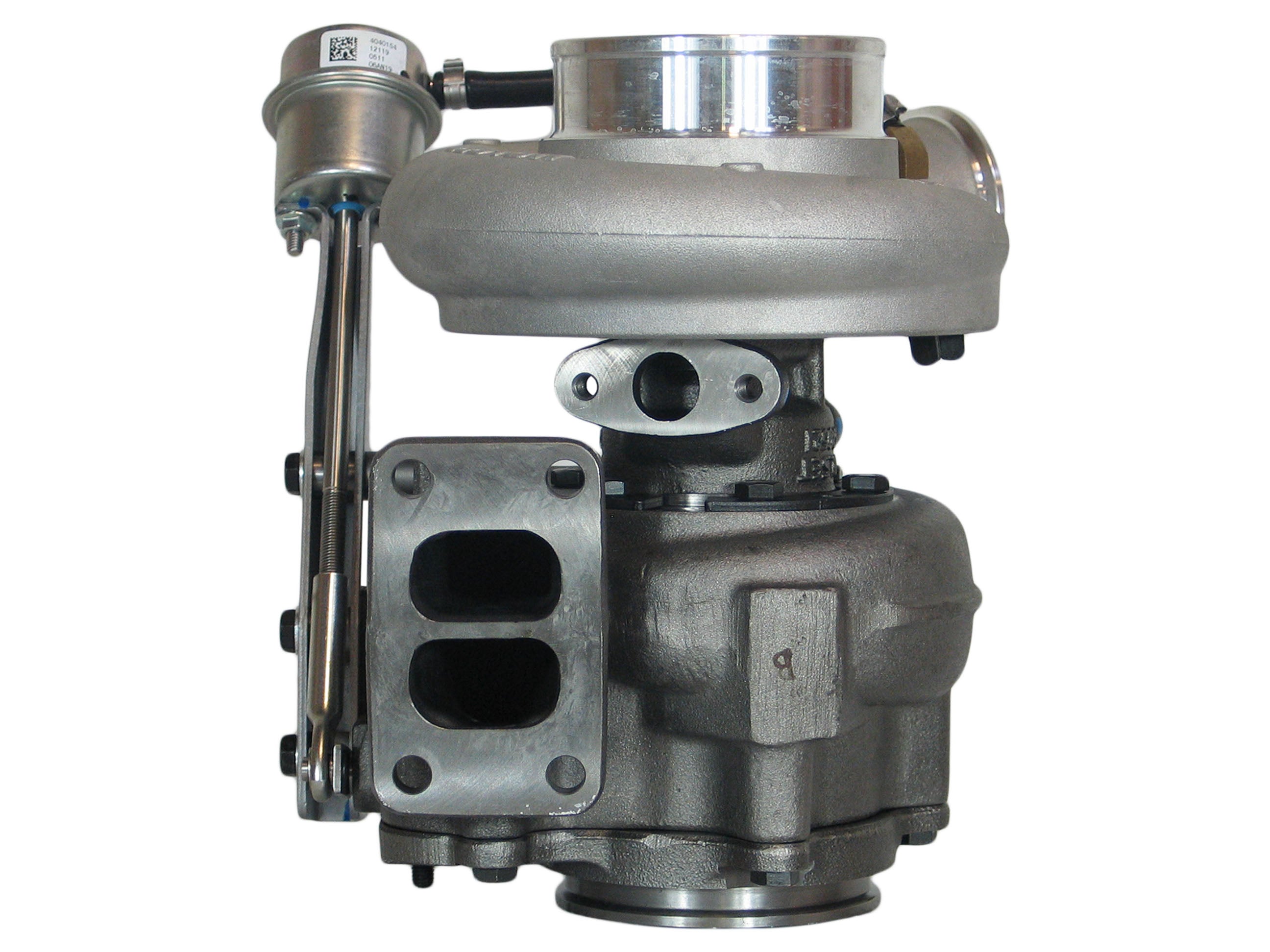

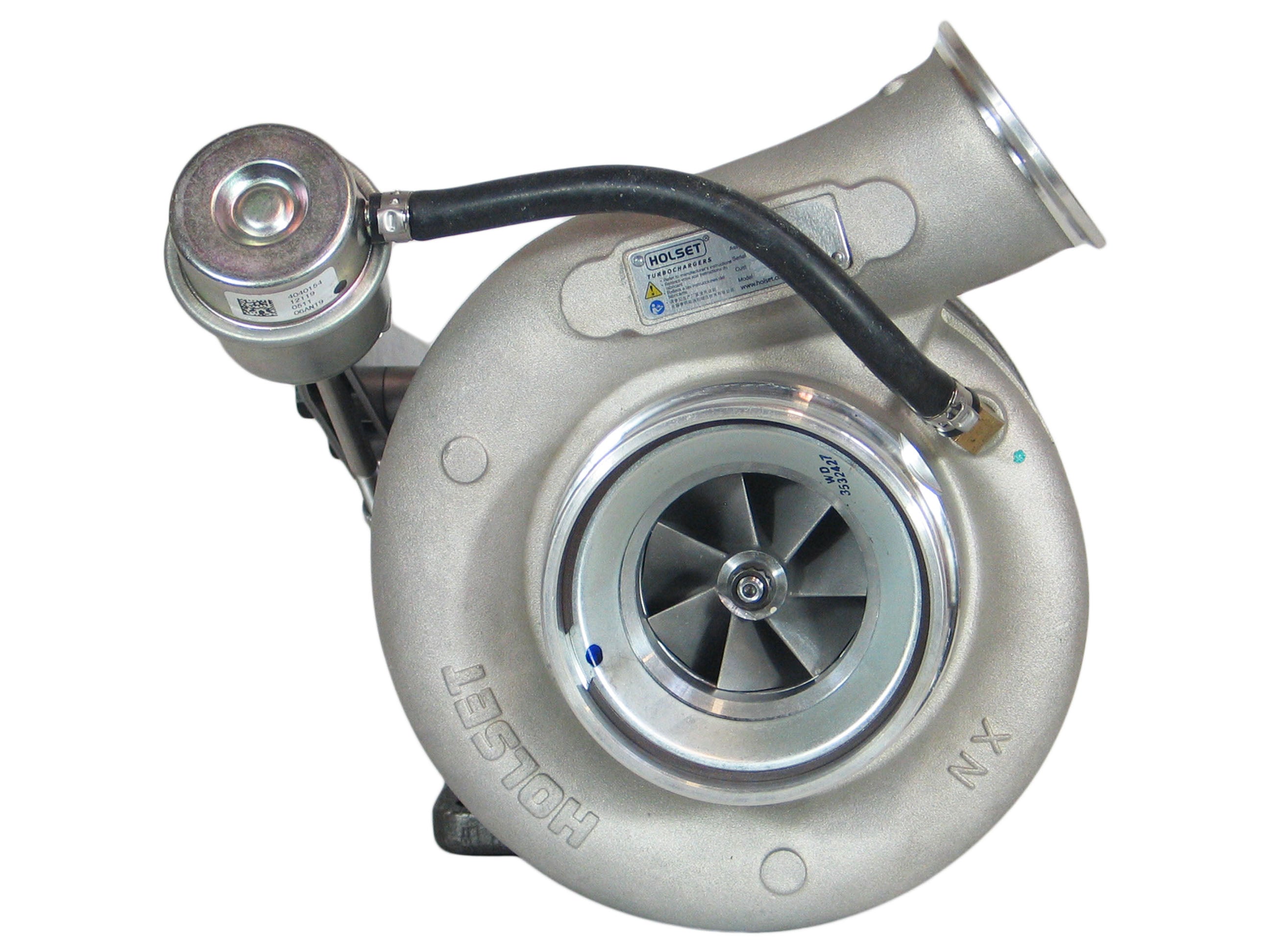

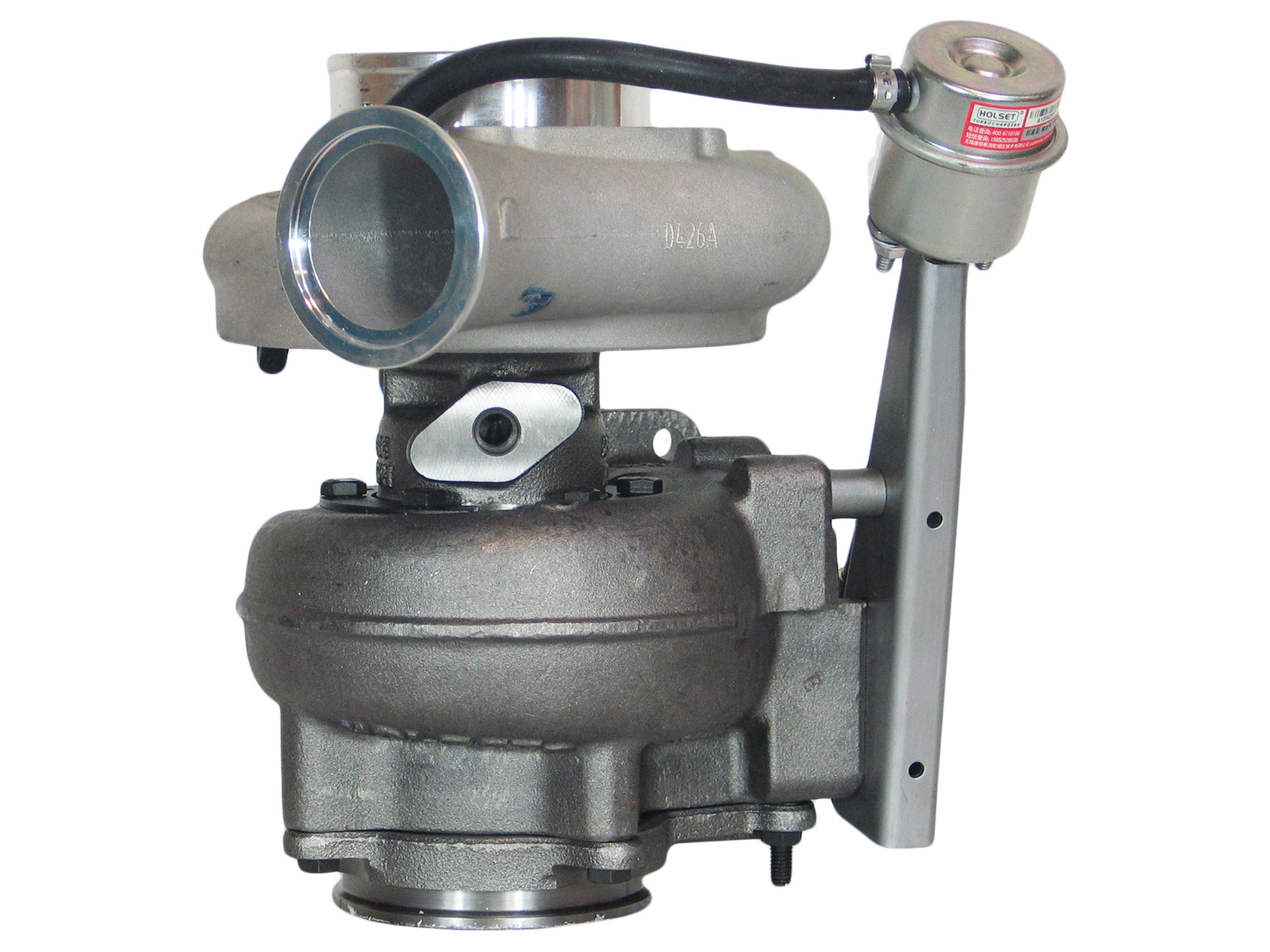

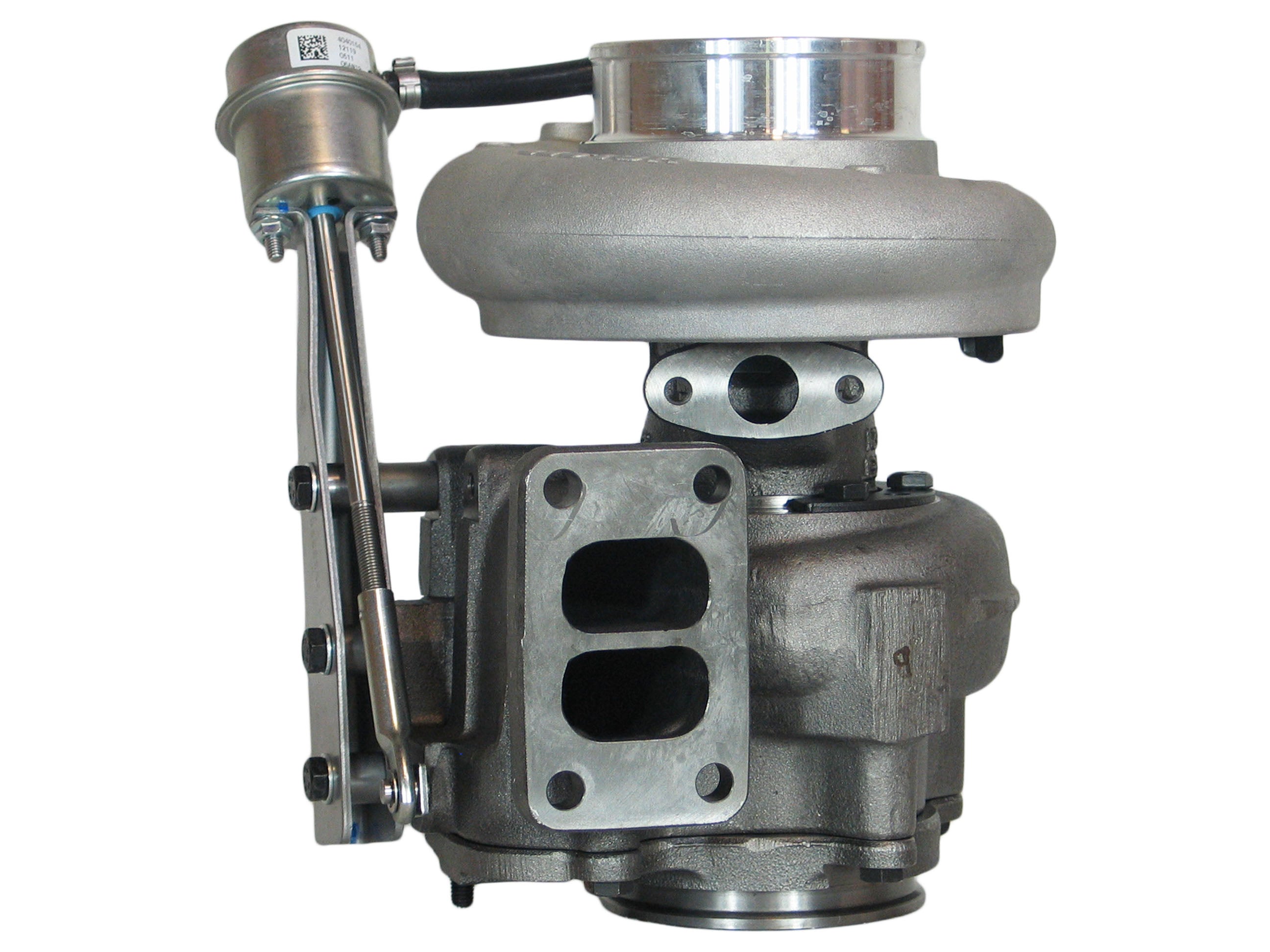

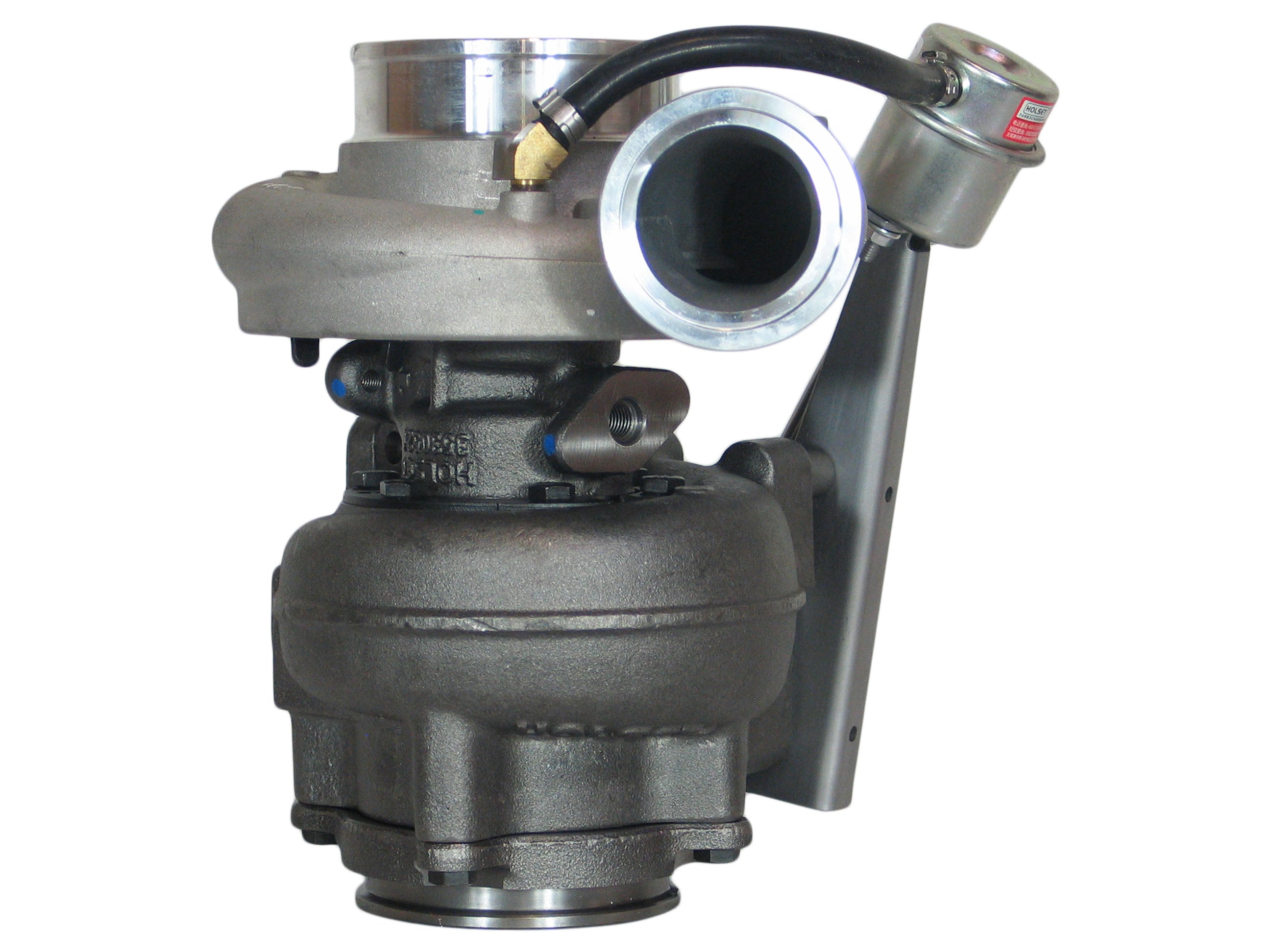

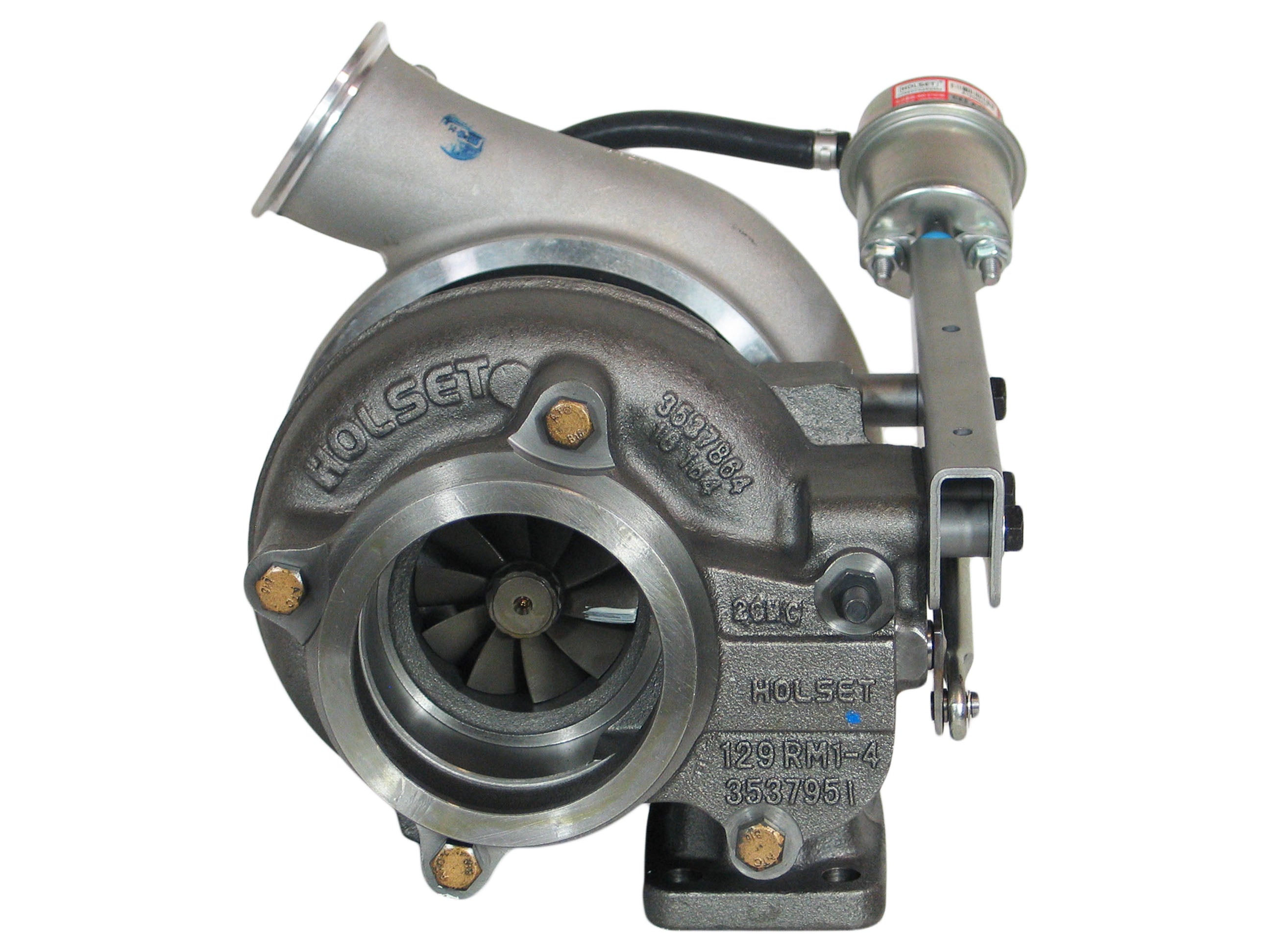

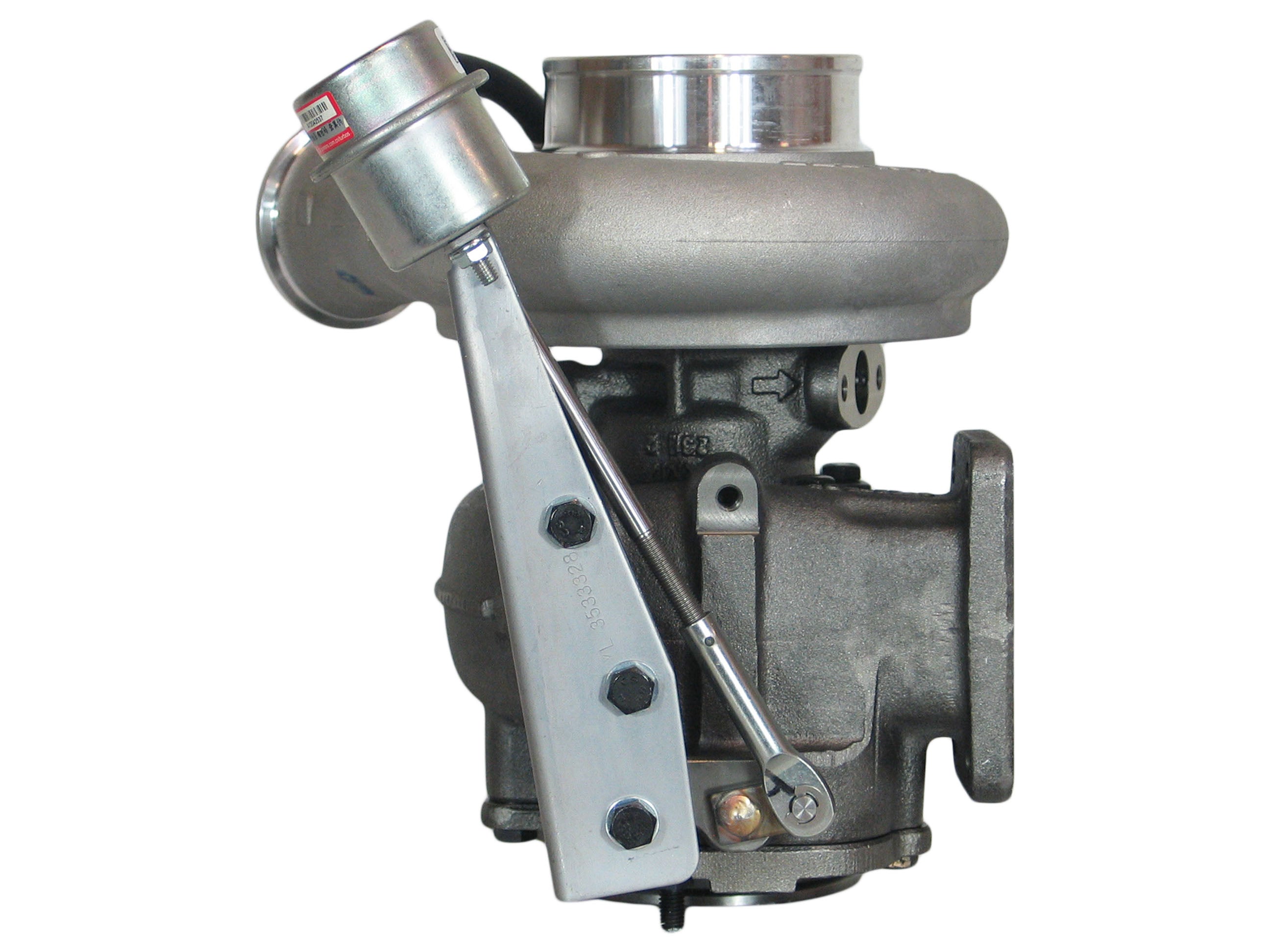

BRAND NEW GENUINE HOLSET TURBOCHARGER

This is a BRAND NEW GENUINE HOLSET TURBOCHARGER. Exact same part sold at the dealership. This is an exact, direct fit OEM replacement turbo.

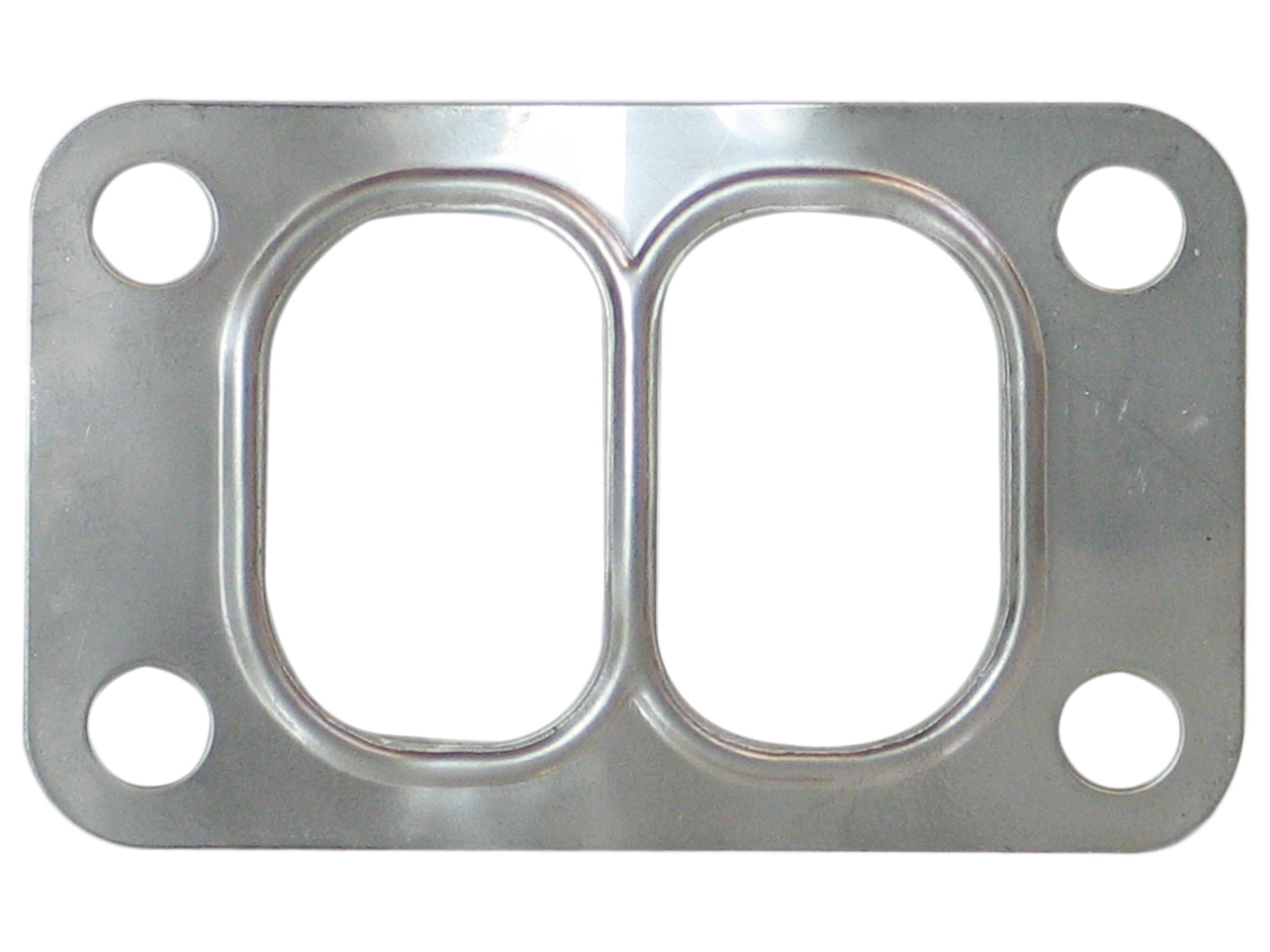

NOTE: This turbocharger also comes with the gasket.

Fits the following:

Part Number: 4051033
Interchangeable Number: 3783602, 4033160, 4046383, 4046498, 4047354, 4048335, 4051032, 4051384, 4051430, 5329180, 755134-0004, 755134-5004, 755134-5004S
OEM Number: 2836441, 4049358
Replacement Number: 3783604
Turbo Model: HX40W
Manufacturer: Holset

Year: 2008-
Engine: L360, L325 20
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 143/210/275/323°
Angle β (Turbine Housing): 17/133/222/360
Back Plate: 3530923 (1154351300)
Bearing Housing: 4050353 (4040382)
CHRA: 4032233
Compressor Wheel: 3599016 (4035879, 4043377, 3596097)(Ind. 60 mm, Exd. 86 mm, 7+7 Blades, Super Back)
Heat Shield: 3519302 (3519304)(1152301340)
Repair Kit: 3575169 (1153035750)
Turbine Wheel: 3596226 (Ind. 64 mm, Exd. 76 mm, 10 Blades)

Application:
2008- Truck, Bus with Cummins L360 Engine

*Important* Please use the above information to determine if the part(s) in this listing fit your vehicle. The most reliable way to make sure the model of turbo is finding the part number from the nameplate of your old turbo.
